SF100 SPI NOR Flash Programmer

Model Name : SF100
The SF100 is a high-speed In-System Programming (ISP) programmer designed to update the SPI Flash soldered on board or Freescale MCU using Ezport.
USD$ 260



Feature

The SF100 is a high-speed 'In-System Programming' (ISP) programmer designed to update the SPI Flash soldered on board or Freescale MCU using Ezport. This model is easily controlled by the DediProg Software on a computer through the USB bus, offering users a friendly interface and powerful features.



Highlights

  • USB Interface
  • Start button feature
  • Signal conflict protections
  • Capable of supplying power to the Serial Flash soldered on board for programming or utilizing an external power source
  • Control Application, controller reset, and MOSFET isolation status
  • Update the Freescale MCU's internal Flash via Ezport (MCF5223, MCF5221, MCF5213) or the external SPI Flash through the SBF interface (MCF5445, MCF5227)
  • Capable of handling two serial flash memories (new feature; provided in SF100 with serial number DP001325, firmware 2.0.4, software 2.0.37 and after)
  • Multi-Programmers Capability
  • Support Windows 2003 and above
  • Support 32 bit or 64 bit OS
  • Support 1 CS pin

High performance

 USB ModeReference ICDensity (Program + Verify)




Memory size

W25X80VSSIG8Mb11s
 W25Q16VSSIG16Mb15s
 W25Q32VSSIG32Mb20.5s
 W25Q64FVSSIG64Mb48.5s
 W25Q128BVFIG128Mb94s
 W25Q256FVFIG256Mb157s
 S25FL512SAGMFI011512Mb297s



*Please note the programming and verify time will depend on different IC types; please refer to the IC specification before programming.



Hardware

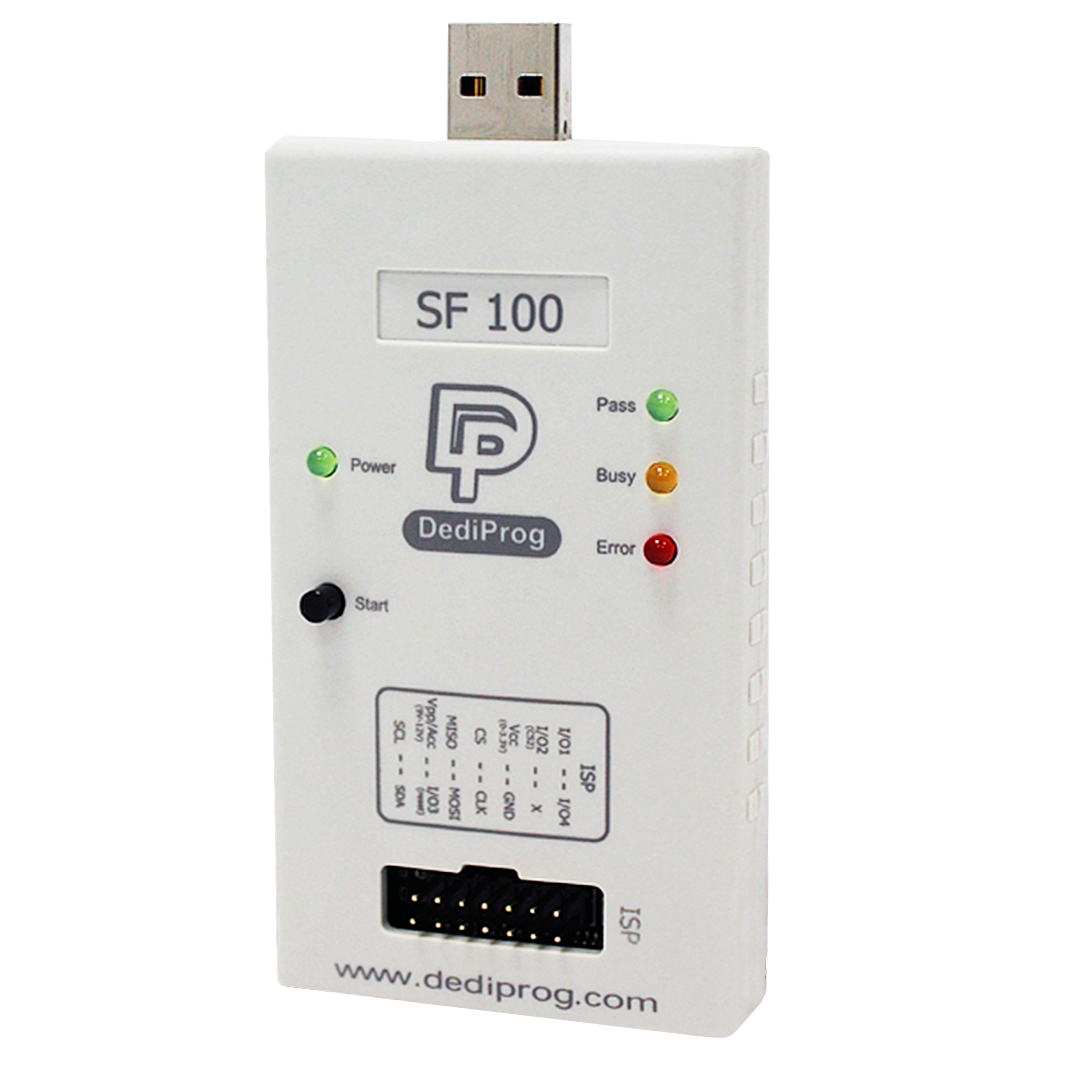

SF100 is designed with an ISP header, through an appropriate connector; users can connect the programmer and drive the SPI signals, supply the memory, and control the controller or application status. Please refer to Table 1 for the SF100 2x7 header pin out. DediProg also provides the SF100 ISP Cable which is used to connect the SF100 programmer to the 2X4 2.54mm ISP Pin Header on board, please refer to Table 2 for the SF100 ISP Cable 2x4 pin out.



Table 1: SF100 ISP Header Pin Out (2x7)

 1

I/O1

I/O4

2
 3

I/O2 or CS2

NC

4
 5

Vcc

GND

6
 7

CS

CLK

8
 9

MISO

MOSI

10
 11

Vpp/Acc

I/O3

12
 13

SCL

SDA

14



   Table 2: ISP Cable Connector Pin Out (2x4)

 1VccGND2
 3CSCLK4
 5MISOMOSI6
 7Vpp/AccI/O38











The SF100 USB software toolchain offers high flexibility and fits different and the highest requirements:

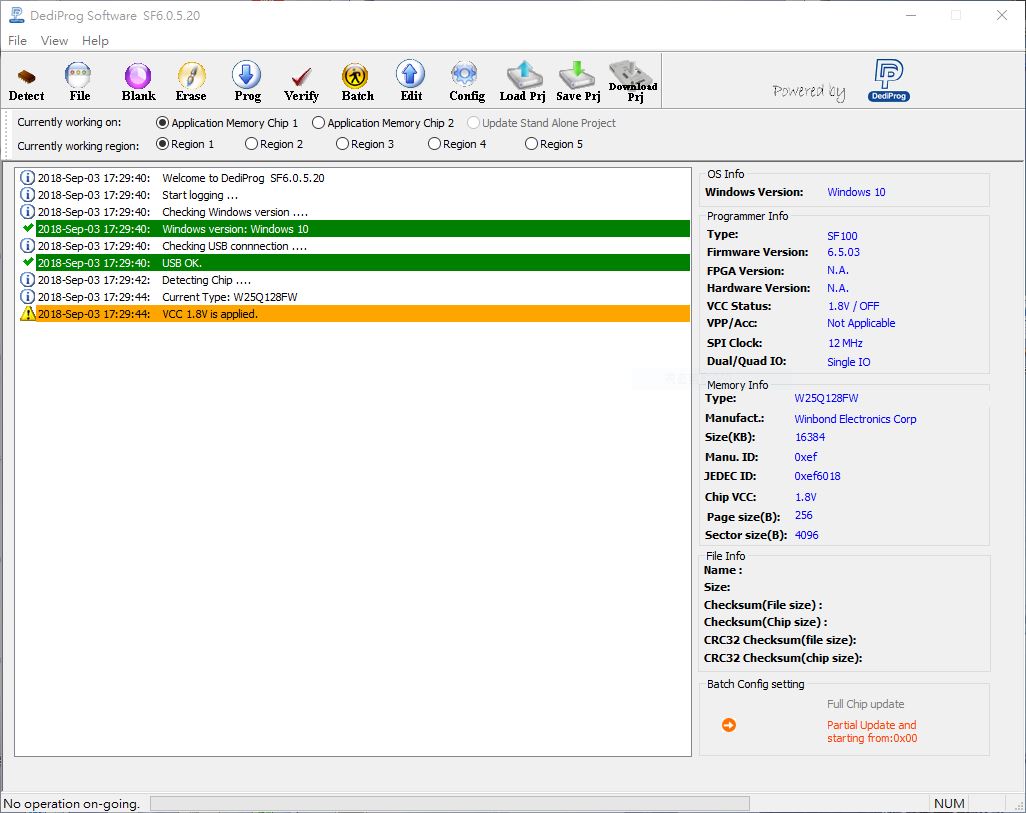

 Engineering Mode
 For engineers and expert to access advanced features for development, repairing etc.
For engineers and experts to access advanced features for development, repair, etc.

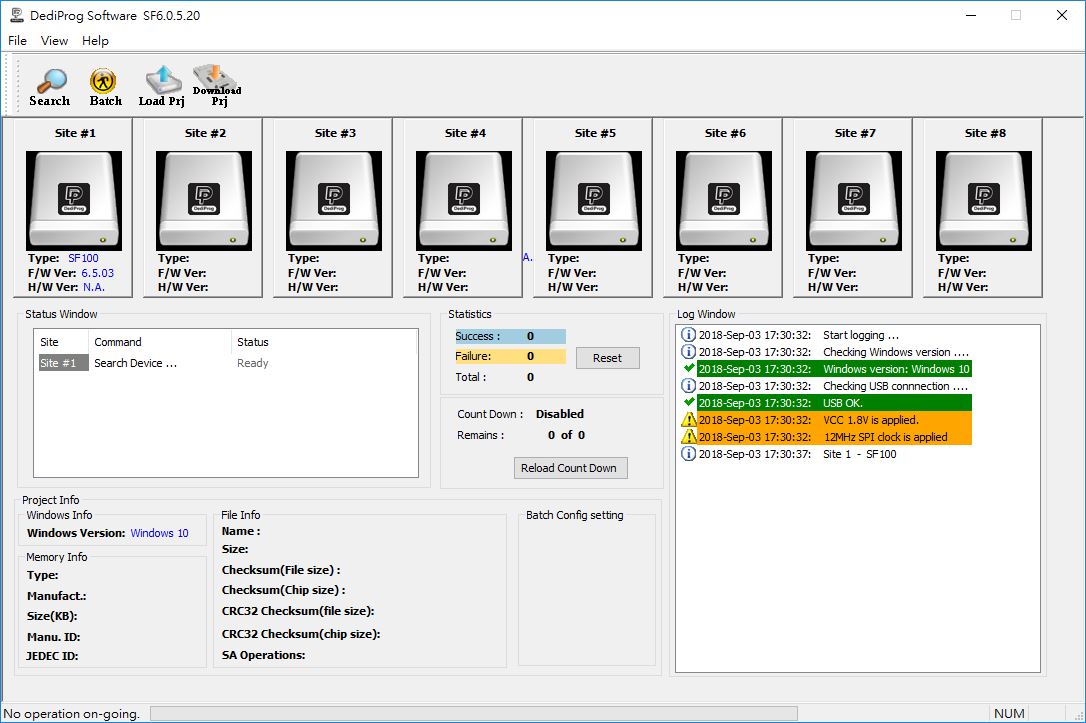

Production Mode
For operators in production to control multiple programmers and improve the throughput.
For operators in production to control multiple programmers and improve the throughput.

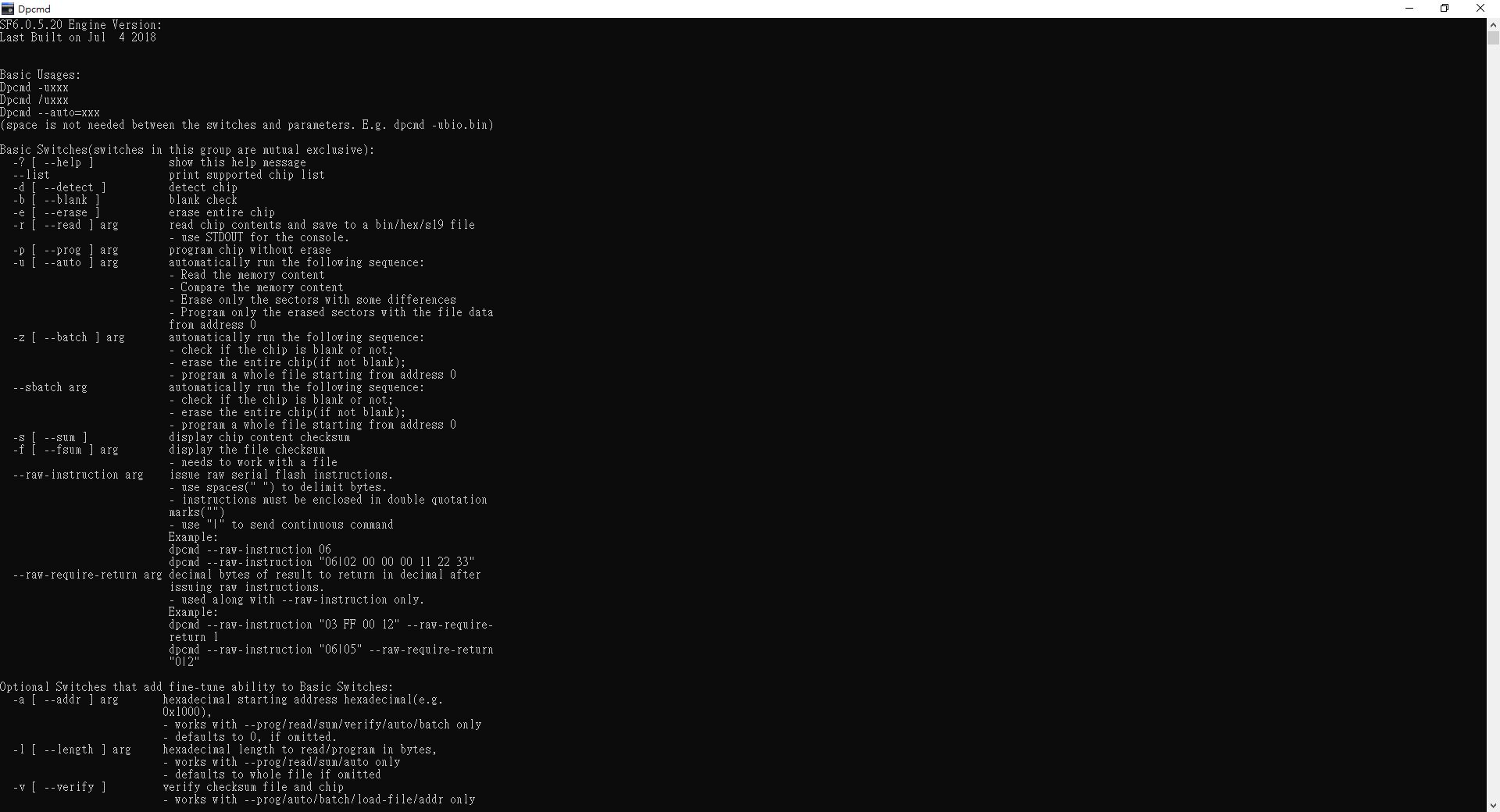

Command Line
Customer software can control multiple SF100 programmers by command line interface.
Customer software can control multiple SF100 programmers by command line interface.




Hardware Requirement for ISP :

To have a clear understanding of the different ISP or backup boot methods and different reference schematics, please download our dedicated application notes: AN0103 and AN0106 and In-System Programming (ISP) for Serial NOR Flash.

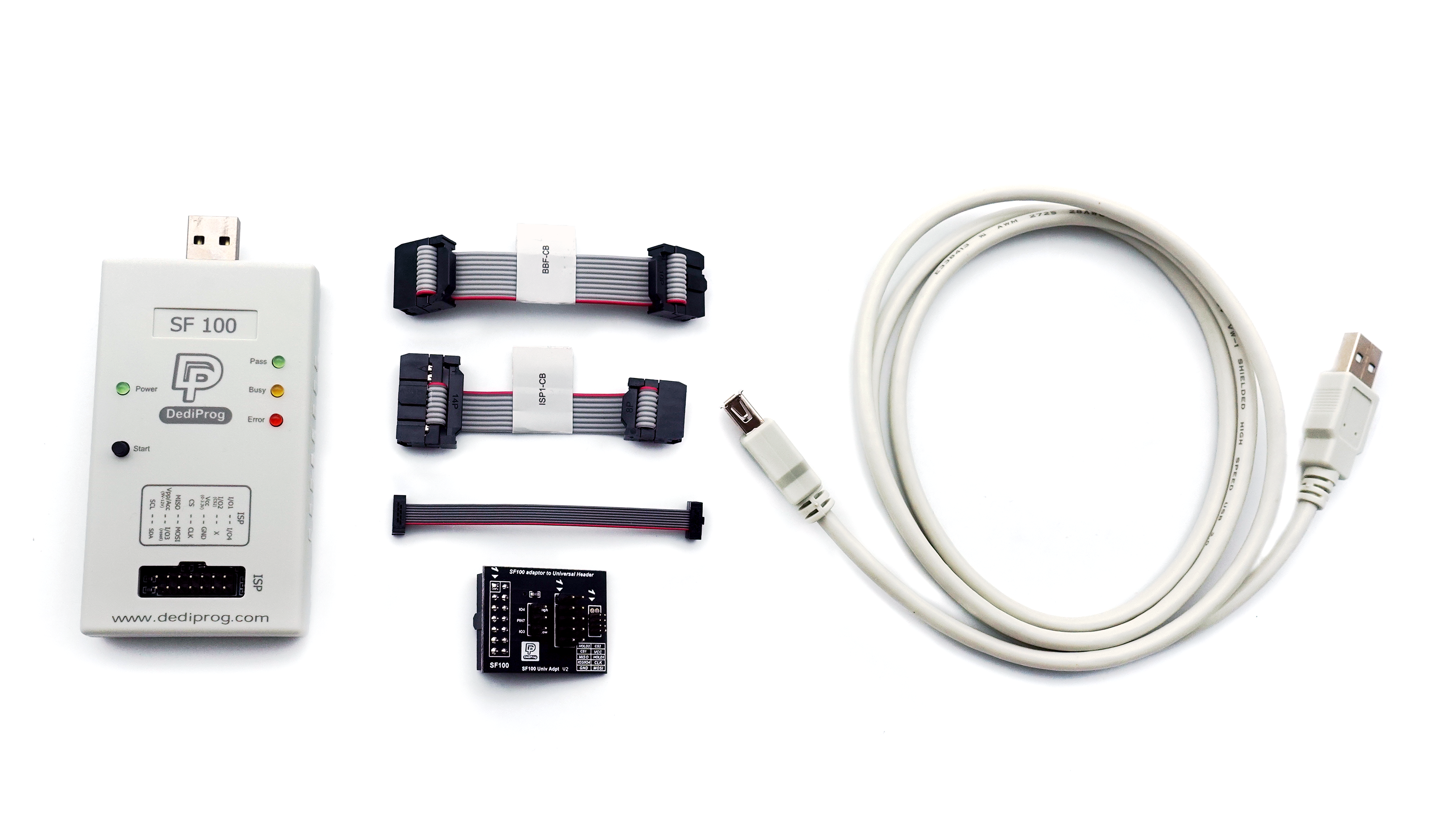

Standard Package



Optional Purchase

  • Backup Boot Flash Module-8N
  • Backup Boot Flash Module-8W
  • Backup Boot Flash Module-D8W
  • Backup Boot Flash Module-DIP
  • Backup Boot Flash Module-16W
  • Backup Boot Flash Module QUAD-8W



Related Accessories

ISP1-CB
SF100 ISP cable
ISP1-CB
USD$6
Product File Type File Description Version Download File size Last Update
SF Software Software SF Software 7.4.104.6
New
2025-10-20
EULA of DediWare and SF Software Software This End User License Agreement (EULA) sets forth the terms and conditions for using DediWare and SF Software. Please read the agreement carefully before downloading, installing, or using the software. v1.1
2025-03-12
Application Note- SF100/SF600/SF600Plus/SF600Plus-G2/SF700 In-System Programming for SPI NOR Flash Manual Application Note- SF100/SF600/SF600Plus/SF600Plus-G2/SF700 In-System Programming for SPI NOR Flash 1.3
2024-11-18
USB Driver for Windows XP Software USB Driver for Windows XP
2024-11-18
SF Software User Manual for SPI NOR Manual SF Software User Manual for SPI NOR 1.0
2024-11-18
SF Series_FAQ Manual SF Series_FAQ 1.2
2024-11-18
Dediprog Linux Software Software [Linux software] Linux software for SF100, SF600, SF600Plus, SF600Plus-G2, and SF700, please visit GitHub at https://github.com/DediProgSW/SF100Linux
2024-11-18
SF100 V6 Firmware Firmware SF100 V6 Firmware - For firmware version V6 and supports Win8.1 and later Windows OS - Firmware V6 cannot downgrade to V5 6.5.03
2024-11-18
SF100 V5 Firmware Firmware SF100 V5 Firmware - For firmware version V5 and supports Win8.1 and later Windows OS - Firmware V5 cannot upgrade to V6 5.5.03
2024-11-18
SF Series FAQ Manual SF Series FAQ 1.1
2024-11-18
Linux User Manual for SF100 / SF600 / SF600 Plus Manual [Linux User Manual] Linux User Manual for SF100 /SF600 / SF600 Plus Please read the manual before using the Linux software
2024-11-18
USB Driver Software USB Driver - Update Digital Signature
2024-11-18
USB Driver User Guide for Win 8/8.1/10 Manual USB Driver User Guide for Win 8/8.1/10 Applicable Model:EM100Pro Series/SF100/SF600/SF600Plus/EE100/StarProg Series/ProgMaster Series 1.0
2024-11-18
SF Firmware Support for Windows Update Procedure for SF series for SF100 / SF600 / SF600Plus Manual SF Firmware Support for Windows Update Procedure for SF series for SF100 / SF600 / SF600Plus *If you need the firmware for Windows8.1/ Windows10, please contact DediProg sales. 2.2
2024-11-18
AN0106 On-Board SPI programming with DediProg tools Manual AN0106 On-Board SPI programming with DediProg tools 2.0
2024-11-18
AN0103 On-Board SPI programming DediProg tool( Designer version) Manual AN0103 On-Board SPI programming DediProg tool( Designer version) 2.0
2024-11-18
SF100 Flyer Flyer SF100 Flyer 1.0
2024-11-18
SF100 Specification Specification SF100 Specification 2.3
2024-11-18
Socket Adaptor Package IC Size - Length(mm) IC Size - Width(mm) IC Size - Pitch(mm) Remark
( 4487) QSPI-TSSO008-030030-001W SOP 3 3 0.65 Remark
( 4260) QSPI-SOP008150mil-002E SOP 3.9 4.9 1.27 Remark
( 4259) QSPI-SOP008207mil-002E SOP 5.28 5.23 1.27 Remark
( 3487) MCU-LQFP080120120-031E LQFP 12 12 0.5 Remark
( 3461) QSPI-SOP016300mil-002E SOP 7.52 10.30 1.27 Remark
( 2827) QSPI-WSON008060080-002D WSON 8 6 1.27 Remark
( 2556) NS-MCU-LQFP100140140-005E LQFP 14 14 0.5 Remark
( 2500) QSPI-BGA008023037-001D BGA 2.35 3.73 0.75 Remark
( 2409) QSPI-USON008020030-002D USON 3 2 0.5 Remark
( 2399) QSPI-SOP008170mil-001W SOP 4.4 5.0 1.27 Remark
( 2396) QSPI-SOT023163295-001D SOT 1.6 2.9 0.95 Remark
( 2342) QSPI-USON008040040-001D USON 4 4 0.8 Remark
( 2338) QSPI-USON008030040-001D USON 3 4 0.8 Remark
( 2337) QSPI-USON008015015-001D USON 1.5 1.5 0.4 Remark
( 2336) QSPI-SOP008030030-001W SOP 3 3 0.65 Remark
( 2335) QSPI-PDIP014300mil-0013 DIP Remark
( 2311) QSPI-BGA024080060-001D02 BGA 6 8 1 Remark
( 2310) QSPI-BGA024080060-001D BGA 6 8 1 Remark
( 2254) SPI-TSOC006037038-001D TSOC 3.94 4.29 1.27 Remark
( 2004) QSPI-SOP016300mil-001E SOP 7.52 10.30 1.27 Remark
( 1877) SPI-SOP008150mil-004E SOP 3.9 4.9 1.27 Remark
( 1731) QSPI-SOP008207mil-001E SOP 5.28 5.23 1.27 Remark
( 1729) QSPI-WSON008060080-001PC WSON 8 6 1.27 Remark
( 1728) QSPI-WSON008060080-001P WSON 8 6 1.27 Remark
( 1727) QSPI-WSON008060080-001D WSON 8 6 1.27 Remark
( 1726) QSPI-WSON008060050-001PC WSON 6 5 1.27 Remark
( 1725) QSPI-WSON008060050-001P WSON 6 5 1.27 Remark
( 1724) QSPI-WSON008060050-001D WSON 6 5 1.27 Remark
( 1723) QSPI-USON008020030-001D USON 3 2 0.5 Remark
( 1722) QSPI-TSSO008044030-001E TSSOP 4.4 3.0 0.65 Remark
( 1721) QSPI-SOP008150mil-001E SOP 3.9 4.9 1.27 Remark
( 1651) SPI-127-WSON008-060050-001D WSON 6 5 1.27 Remark
( 1568) SPI-BGA024060080-004O BGA 6 8 1 Remark
( 1071) SPI-127-TSOC006-037038-001A TSOC 3.94 4.29 1.27 Remark
( 862) SPI-100-BGA024-080060-001O BGA 6 8 1 Remark
( 825) SPI-127-WSON008-060050-002P WSON 6 5 1.27 Remark
( 788) SPI-050-BGA012-020040-001A BGA 4.02 2.08 0.5 Remark
( 755) SPI-050-BGA031-043065-001A BGA 4.38 6.54 0.5 Remark
( 583) SPI-050-BGA008-175271-01AAC BGA 1.758 2.713 0.5 Remark
( 544) SPI-127-SOP008-150mil-02AE SOP 3.9 4.9 1.27 Remark
( 513) SPI-127-SOP008-207mil-01AW SOP 5.23 5.23 1.27 Remark
( 395) SPI-050-BGA008-168199-01BA BGA 1.68 1.99 Remark
( 387) SPI-050-BGA016-240340-01BA BGA 2.4 3.4 0.5 Remark
( 376) SPI-080-USON008-030040-01BA USON 3 4 0.8 Remark
( 47) SPI-127-WSON008-060050-01EP WSON 6 5 1.27 Remark
