AOI Inspection Systems

Model Name : AOI Series
2D and 3D Inspection Systems, check the IC package conditions before packing.
This item is unavailable for online purchase.

Description

DediProg provides various types of automatic optical inspection systems. Integrating one of these systems with DediProg's automated programming system allows for easy examination of IC conditions during programming, either from the top or bottom, in 2D or 3D.



2D Inspection Options:

  • AOI-632
    • Top Inspection

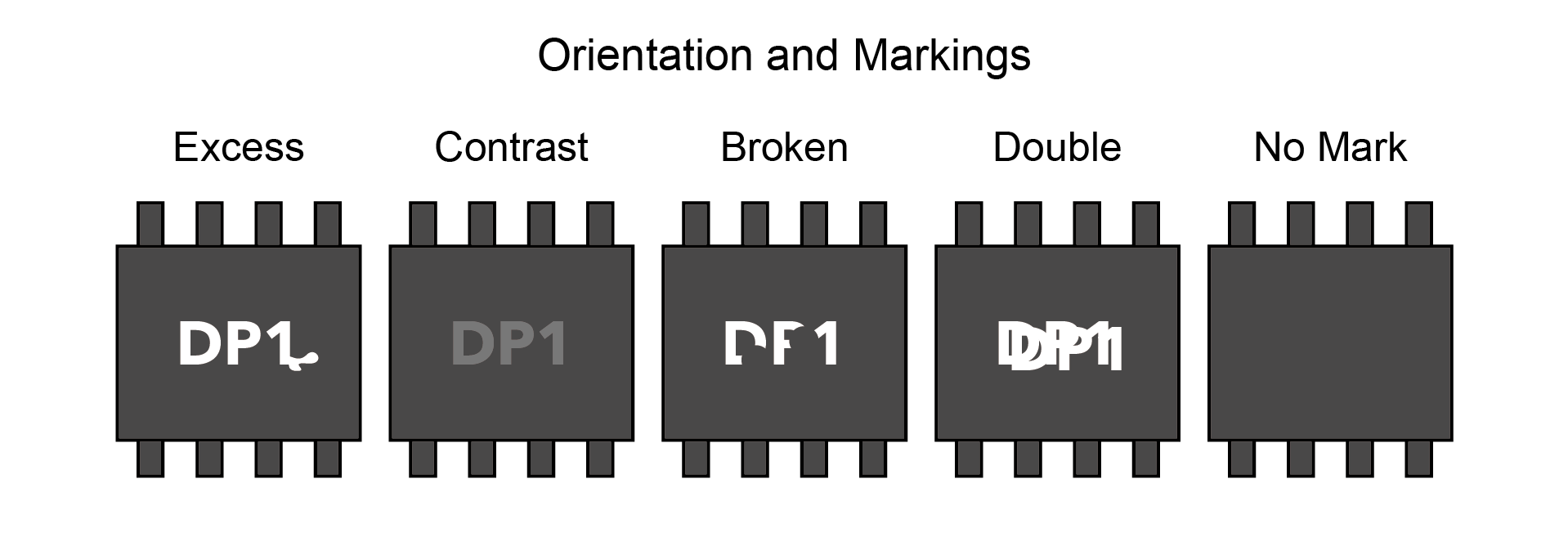

    • Detect marking and orientation
    • Package: All (Except for the CSP that has a glossy surface).
    • Install on DP600 Series or Auto Tray-350B Series
    • Device size: 32mm x 24mm
    • Camera Resolution: 0.36MP

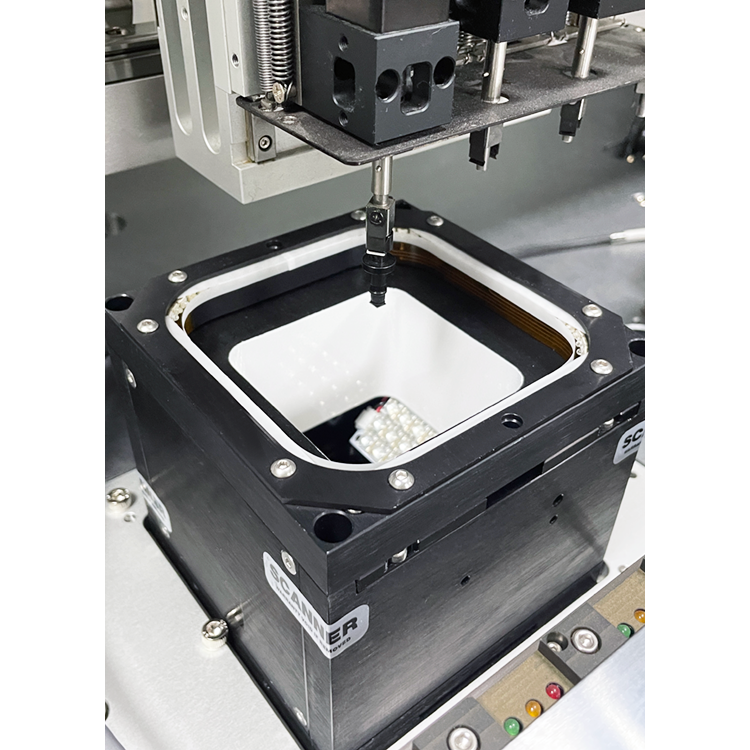

  • ANS-640-B
    • Bottom Inspection
    • Detect Lead pitch, Lead Skew, lead length, package size, Ball pitch, Ball diameter, Ball count, etc.
    • Package: BGA, CSP, QFN, SOP, QFP.
    • Install on handler
    • Device Size: Above 5mm x 5mm
    • Camera Resolution: 5MP



  • AOI-640C-B
    • Bottom Inspection
    • Detect Ball pitch, Ball diameter, Ball count, package size, dirt between, void, pin count, big chipping, etc.
    • Package: CSP & BGA
    • Install on handler
    • Device Size: Below 5mm x 5mm
    • Camera Resolution: 5MP


Advantages of 2D Inspection:

  1. Cost-effective
  2. High speed
  3. Flexible inspection capabilities





3D Inspection Options:

  • ANS-680/ANS-681
    • Bottom Inspection
    • Detect Co-planarity, Lead pitch, Lead Skew, lead length, Ball pitch, Ball diameter, Ball count…etc.
    • Package: QFN, SOP, QFP, BGA
    • Self-Calibration
    • Install on handler



  • ANS-690
    • Bottom Inspection
    • Detect Co-planarity, Lead pitch, Lead Skew, lead length, Ball pitch, Ball diameter, Ball count…etc.
    • Package: SOP, QFP, CSP, BGA
    • Install on handler



Advantages of 3D Inspection:

  1. Co-planarity inspection capability
  2. Low inspection false rate
  • Stereo Vision Imaging Technology
  • Multi-spectral LED strobe lighting
  • No hardware change-over is required between package types
