EM100Pro-G3 SPI NOR Flash Emulator

Model Name : EM100Pro-G3
EM100Pro-G3 is an SPI NOR Flash emulator that seamlessly integrates with high-speed DRAM memory, ensuring optimal code updating performance.
USD$ 780






Feature

EM100Pro-G3 is an SPI NOR Flash emulator that seamlessly integrates with high-speed DRAM memory, ensuring optimal code updating performance. Developed in collaboration with leading SPI NOR Flash suppliers, this tool is designed to emulate the behavior of both current and next-generation SPI NOR Flash devices.

This emulator significantly improves productivity by swiftly downloading firmware code or data, even for high-density applications of up to 1Gbit. Additionally, it offers a valuable "SPI BUS Analyzer" feature that captures and logs all SPI commands and data on the SPI bus, facilitating the debugging process.


Highlights

  • Emulate all the market SPI NOR Flash in one click
  • Excellent code Update and download performances
  • Designed to support future SPI NOR Flash evolution:
    • Voltage: 1.8V/3.3V
    • Frequency: Up to 50MHz for Single IO, Dual IO, and Quad IO
    • Capacity: 512Kbit~4Gbit
  • Support Dual and Quad IO communication
  • Display and edit memory content evolution
  • Debug functions:
    • SPI Protocol analyzer and SPI HyperTerminal
    • High-speed internal buffer for SPI Trace log data saving
    • Suitable with Intel motherboard
    • EM100Pro-G3 can connect with the Intel motherboard by a specific adaptor (optional)



Performance (Erase+Program+Verify)

 IC Density ProgrammerEM100Pro-G2EM100Pro-G3
 8Mb9s3s3s
 16Mb13s3s3s
 32Mb16s3s3s
 64Mb38s3s3s
 128Mb75s3s3s
 256Mb115s5s3s
 512Mb200s10s5s
 1GbN/A20s10s
 2GbN/A40s20s



Hardware

The EM100Pro-G3 has two 2.54mm pitch male connectors of:

  • 2x2 for the Reset and Trig signals
  • 2x10 for the Emulation signals

EM100Pro-G3 is designed with an ISP header, through different cables/adaptors, it can connect to the PCB board directly. Please refer to Table 1 for the EM100Pro-G3 2x10 header pin out.
DediProg also provides the EM100Pro-G3 ISP Cable which is used to connect the EM100Pro-G3 programmer to the 2X5 2.54mm ISP Pin Header on board, please refer to Table 2 for the EM100Pro-G3 ISP Cable 2x5 pin out.



Table 1: EM100Pro-G3 ISP Header Pin Out (2x10),(2x2)

 1NCCS22
 3CS1Vcc4
 5MISO/DQ1Hold/DQ36
 7Wp/DQ2CLK8
 9GNDMOSI/DQ010
 113.3VNC12
 13CTRLNC14
 15CTRL3.3V16
 17CTRLCTRL18
 19GNDCTRL20



 1GNDReset2
 3GNDTrig4



Table 2: ISP Cable Connector Pin Out (2x5)

 1NCCS22
 3CS1Vcc4
 5MISO/DQ1Hold/DQ36
 7Wp/DQ2CLK8
 9GNDMOSI/DQ010

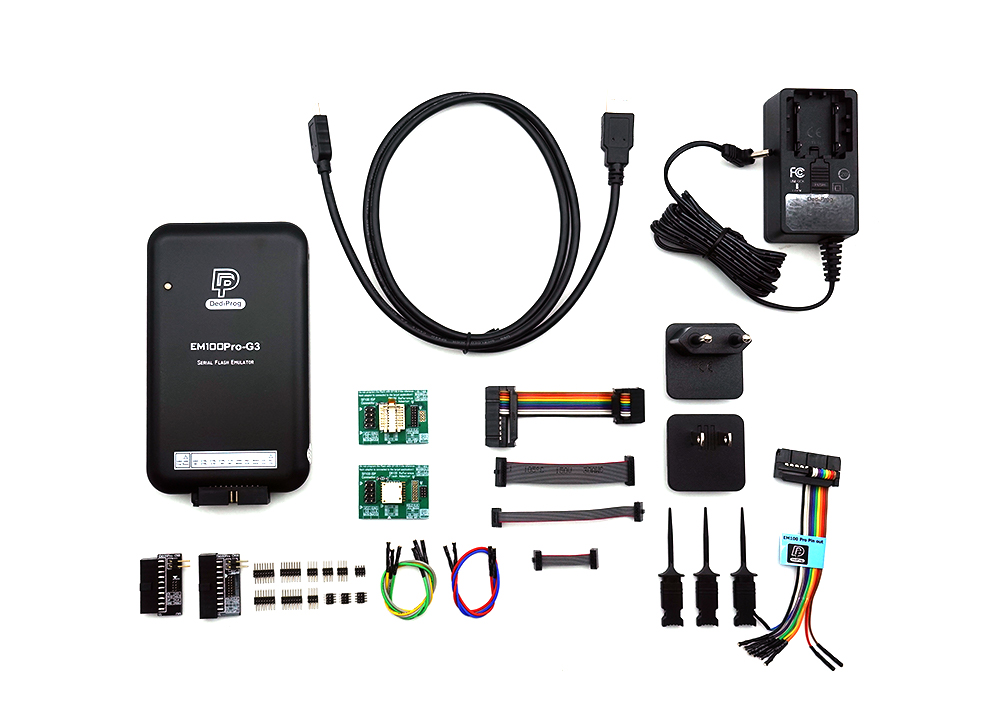

Standard Package






  • EM100Pro-G3 x 1
  • USB 2.0 100cm Cable (A Male -C Male) x 1
  • Power Adapter (Including US and EU plugs) x 1
  • 2.54mm 2x10 to 2.54mm 2x5 cable x 1
  • 1.27mm 2x4 to 1.27mm 2x4 cable x 1
  • 1.27mm 2x4 to 1.27mm 2x4 cable 2.5cm x 1
  • 1.27mm 2x8 to 1.27mm 2x8 cable x 1
  • 2.54mm 2x10 to 1.27mm 2x4 SO8 connection adaptor x 1
  • 2.54mm 2x10 to 1.27mm 2x8 SO8 connection adaptor x 1
  • 12cm EM100Pro split cable with grabber clip x 1
  • 1.27mm 2x8 SMT male header  (10.3mm) x 4
  • 1.27mm 2x4 SMT male header (6.0mm) x 4
  • 1.27mm 2x4 SMT male header (10.3mm) x 4
  • 15cm single wire with 2.54mm Dupont head x 5
  • EM100Pro Reference Flash Adaptor (SO8W) x 1
  • EM100Pro Reference Flash Adaptor (SO16W) x 1
  • Grabber Clip x 2

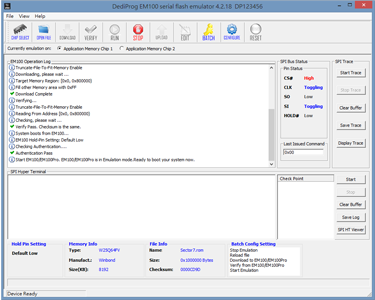

SPI Flash Emulation Interface

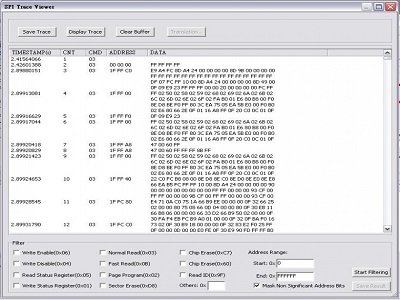

SPI Bus Trace Interface

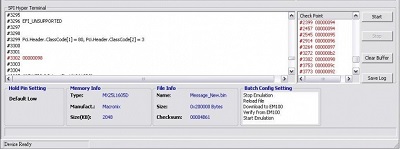

SPI Hyper Terminal Interface






Related Accessories

EM-DIP-CB
SO8 DIP Cable
EM-DIP-CB
USD$25
