10-Pin Split Cable With 2x10 Connector

Model Name : EM-SP-CB
10-Pin Split Cable With 2x10 Connector
USD$ 25

Description

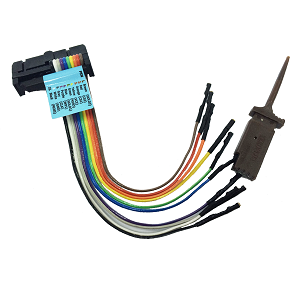

The 10-Pin Split Cable has a 10 pin header which can be connected to the Serial Flash Emulator (EM100 or EM100Pro Series) and SF600 Series (SF600Plus/SF600Plus-G2) programmer directly. Each individual split cable has a different color and is labeled with the pin name so that they are easy to identify. Each individual lead is terminated with a single pin crimp connector with the same 0.100" (2.54mm) pitch. The cable is only 12cm long to minimize signal degradation. The Grabber on the hold pin can be used to grab the hold pin of the soldered serial flash on the target board in case there is no hold pin designed on the target board pin header.



Hardware

Product File Type File Description Version Download File size Last Update
IC Part Number Manufacturer Chip Type
Socket Adaptor Package IC Size - Length(mm) IC Size - Width(mm) IC Size - Pitch(mm) Remark
