DP600-M2A Automated Taping Machine

Model Name : DP600-M2A
For 3rd party integration, let customer design and install their carrier tape holder by themselves.
This item is unavailable for online purchase.



Feature

DP600-M2A is a new generation Automated taping machine, which is designed to integrate with third-party automation. The input carrier tape reel holder can be designed based on a third party's automation needs. DP600-M2A is easy to operate & tape width adjustment can be finished within 10 seconds without any tool. It supports devices packaged in 8~88mm width tape. With advanced characteristics, DP600-M2A offers the best taping solution for the different automation integrations.



Highlights

  • Mechanical Accuracy +/- 0.04 mm.
  • Support up to 22" (550mm) input and 13" (330mm) output tape reel.
  • Supported 8~88 mm width tape
  • Supported 32 mm depth carrier tape.
  • RS232 interface easily communicates with a third-party automated system.
  • PSA (Press sensitive adhesive) and heat sealing.
  • CE Certificate.



Checking Systems

  • Cover Tape Sensor: The sensor will alarm when running out of cover tape.
  • Empty Pocket Sensor: Check if each pocket has carried an IC.
  • Floating Chip Sensor: Check the floating IC.
  • Carrier Tape Sensor: The sensor will alarm when running out of cover tape.

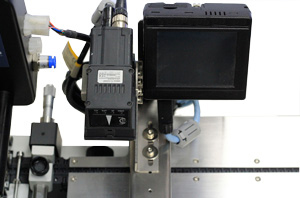

2D Inspection System
Use CCD to check IC Appearance

Use CCD to check IC Appearance

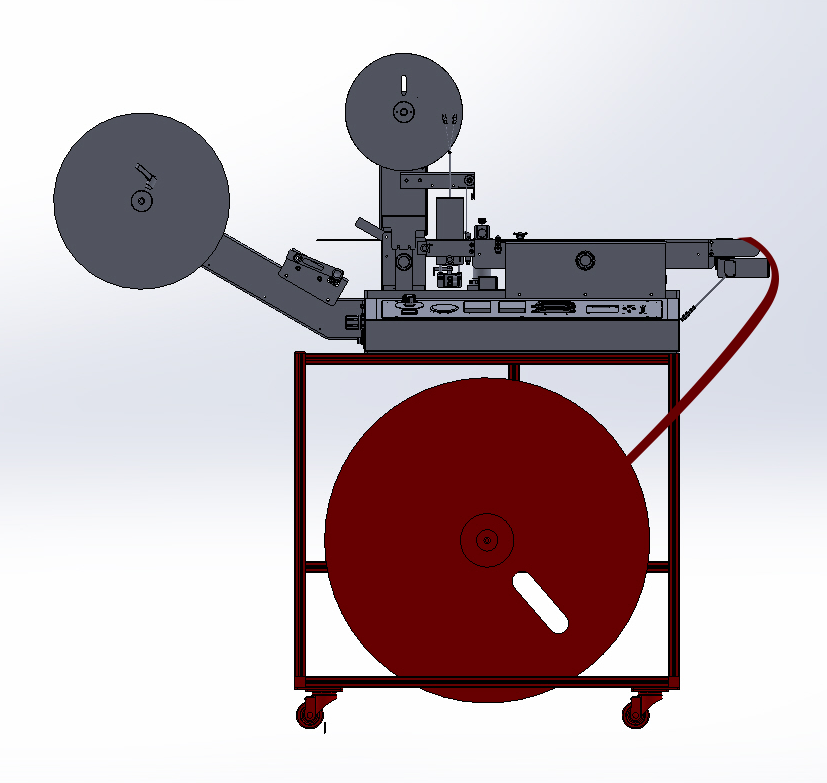

Carrier Tape holder for input (For Illustration Only)
  Customer can design and install the carrier tape reel holder by themselves. (The red parts)

Customers can design and install the carrier tape reel holder by themselves. (The red parts)



Standard Package

  • DP600-M2A Main Unit x 1
  • User Manual x 1



Optional Accessories

  • 2D Inspection System
  • RS232 Interface

       **If ordered the sensor package, the customer needs to design and install the carrier tape reel holder by themselves.
