DDR5 Module Test Socket

Model Name : DDR5 Module Test Socket
DediProg's DDR5 Socket is designed via an efficient limit frame, minimizing the replacement time via fast removal functions.
This item is unavailable for online purchase.
DDR5 Module Test Socket

DDR5 Module Test Socket Function

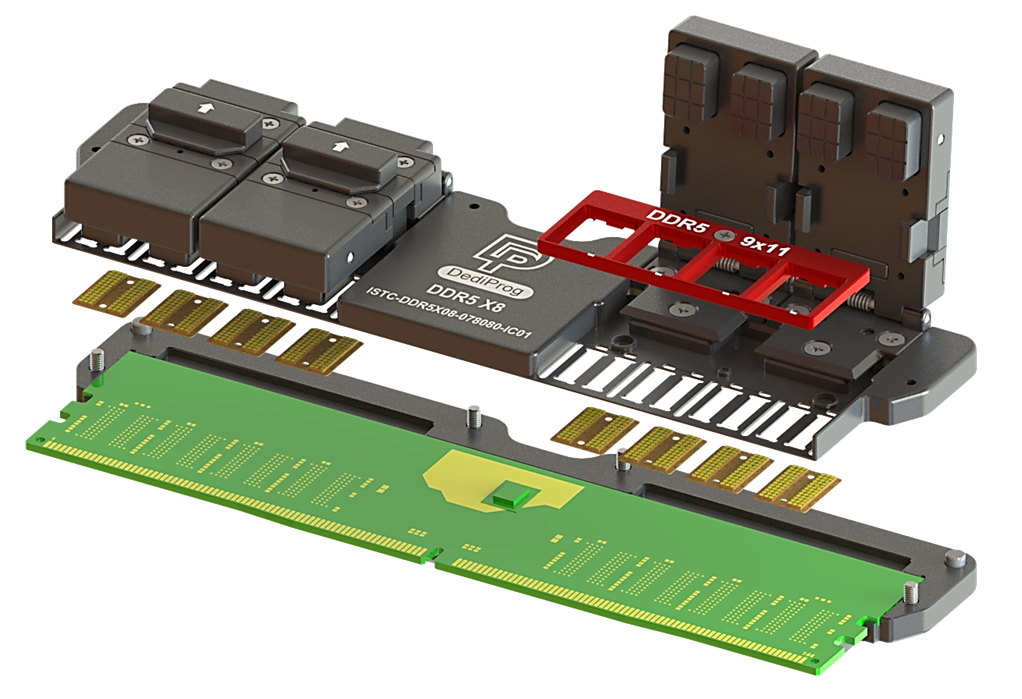

As the transmitting speed for DDR5 SDRAM is upgraded, the DDR5 socket applies the I Ultra-thin Conductive Adhesive (PCR) to achieve excellent performance in high-speed signal transmitting (>6000MHz).

SDRAM's package is standard with a scale of 7.5x11, 9x1, and 10x11 mm. The DDR5 Socket is designed via an efficient limit frame, minimizing the replacement time via fast removal functions.






SPEC

  1. IC Size :  9x11 / 9.5x11 / 10x11
  2. Digital Data Rate : 8000 Mb/s
  3. Operating Temp. : -15℃~125℃



Contact Element

  1. Rubber ( PCR )
Contact ElementPCR
Life Time50,000 ~ 100,000 Cycle
Pitch>0.40mm
Temperature-15℃~125℃
Bandwidth>60GHz
IC PackageBGA、LGA、QFN、SON
Ease of RepairHigh



Material

  1. Ultem-2300
  2. Aul.-6061

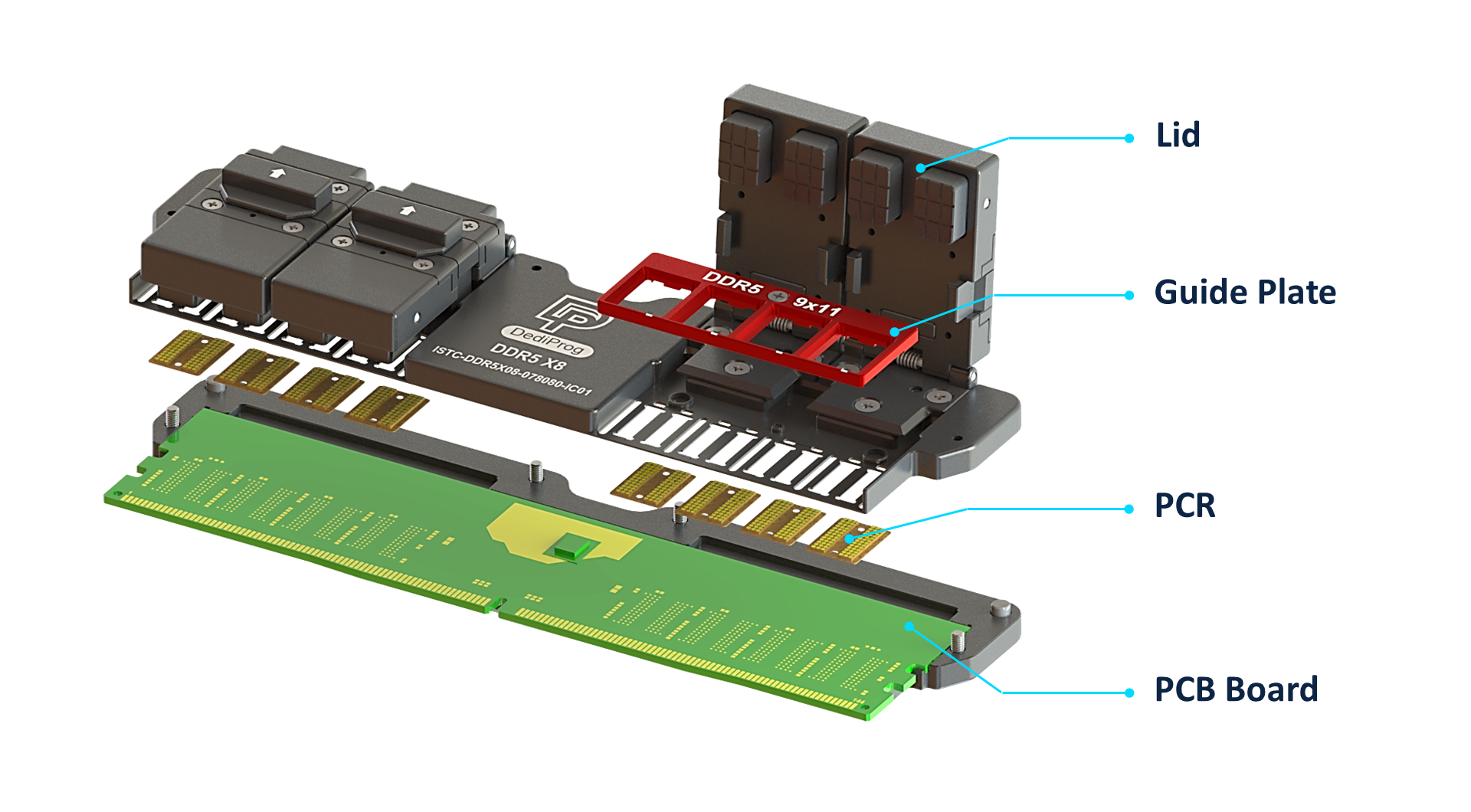

Structure



DDR5 Module Test Socket

DDR5 Module Test Socket
