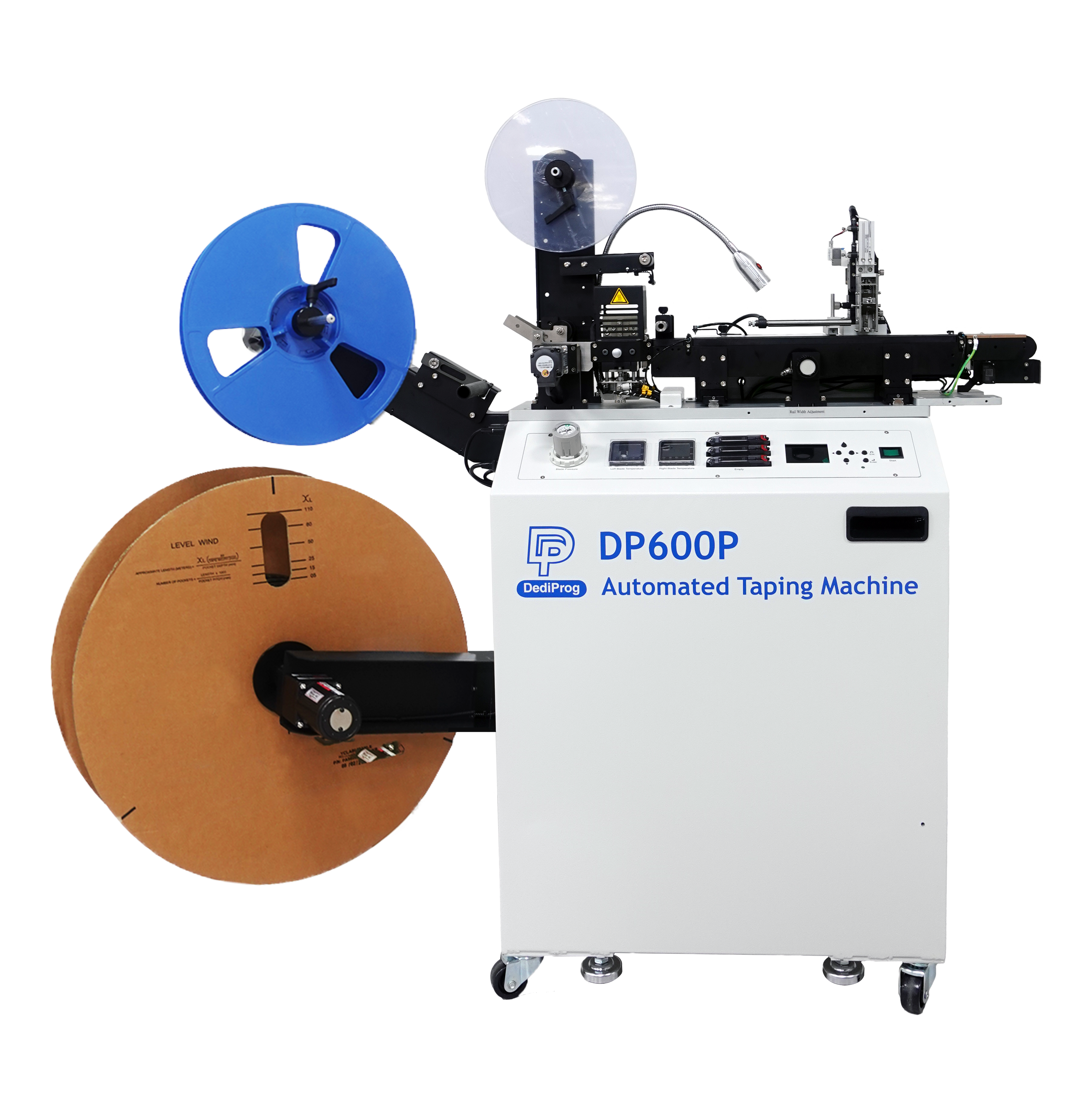

DP600P Automated Taping Machine

Model Name : DP600P
The DP600P is an automated taping machine that allows for quick, tool-free tape width adjustments.
This item is unavailable for online purchase.

Feature

The DP600P automated taping machine is designed for simplicity and efficiency, making it the ideal solution for a wide range of taping applications. It supports tape widths from 8mm to 44mm and offers quick adjustments to accommodate various IC packages, capable of handling packages down to 1x1mm. With enhanced stability and a user-friendly design, it boosts overall performance and ensures a more reliable manufacturing process.



Highlights

  • PSA (Press sensitive adhesive) and heat sealing
  • Mechanical Accuracy +/- 0.04mm
  • Supports up to 22" (550mm) input and 13" (330 mm) output tape reel
  • Supports 8~44mm width tape
  • Supports 14mm depth carrier tape
  • Supports a wide range of IC packages, including BGA, LQFP, QFN, SOP, CSP, etc.
  • Capable of handling IC packages down to 1x1mm.
  • RS-232 & IO interface, user can easily communicate with DediProg automated systems
  • Protective covers on various parts to shield against heat, electrostatic discharge (ESD), and dust.
  • CE Certificate



Checking Systems

  • Cover Tape Sensor: The sensor will alarm when running out of cover tape.
  • Empty Pocket Sensor: Check if each pocket has carried an IC.
  • Floating Chip Sensor: Check the floating IC.
  • Home Sensor:  Detect the home position.
  • Carrier Tape Sensor: The sensor will alarm when running out of cover tape.



High Compatible

DP600P is equipped with RS-232 communication protocol and IO interfaces, allowing for easy integration with DediProg's automated systems. It also features an optional IC marker and a 2D AOI inspection system, allowing the DP600P to support automated system integration while enhancing quality assurance, marking, and packaging procedures in the production line.

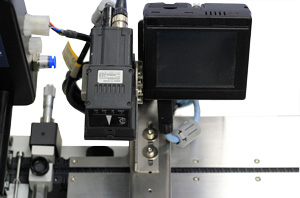

2D Inspection System
Use CCD to check IC Appearance
Use CCD to check IC Appearance

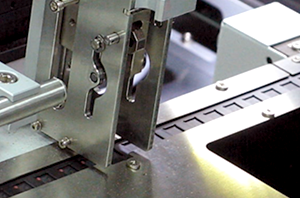

Ink Marker
Stamp dot, number or letter on the IC with different colors.
Stamp dots, numbers, or letters on the IC with different colors.




Standard Package

  • DP600P Main Unit x 1
  • User Manual x 1



Optional Accessories

  • Ink Marker
  • Inkjet Marker
  • 2D AOI Inspection System
