SF600Plus-G2 SPI NOR Flash Programmer

Model Name : SF600Plus-G2

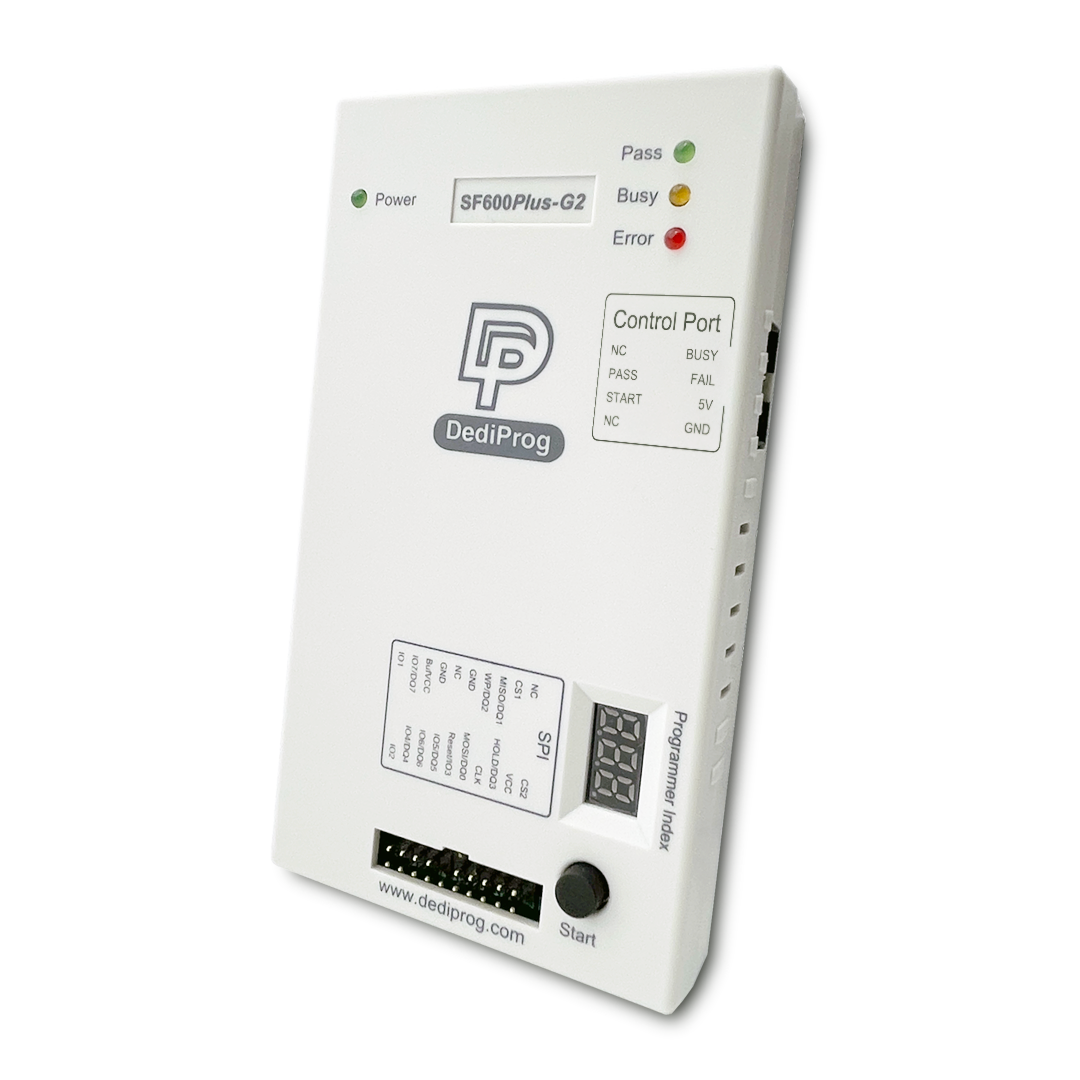

SF600Plus-G2 is a Serial NOR/NAND Flash programmers with In Circuit and Standalone programming mode.
USD$ 350

SF600Plus-G2 Feature

SF600Plus-G2 is a high-speed Serial NOR/NAND Flash programmer with In-Circuit Programming (update the SPI Flash soldered on board) and Standalone programming (update the SPI Flash in the socket adaptor) Mode. With DediProg SF software and the USB, it offers friendly user interfaces and powerful features.

The newly designed SF600Plus-G2 is the upgraded version of SF600 and SF600Plus, which greatly increases the programming efficiency with the SOC architecture of FPGA. Other than the original functions of the SF600/S600Plus, it can also support SPI NAND, which will be convenient for the developer when programming.


SF600Plus-G2 Highlights

  • High-speed USB and high SPI performance; the USB and Standalone mode support any volume of the SPI Flash on the market.
  • Support 1.2V low voltage IC.
  • Support IC Kinds: SPI NAND/SPI NOR.
  • In-Circuit Programming: Program on board SPI Flash.
  • Off-line Programming: Program SPI Flash in the socket. (Support ProgMaster's and NuProgPlus' sockets)
  • Start button feature: Able to Batch when connecting to the software.
  • Signal conflict protections.
  • Multi-Programmers Capability through USB.
  • Programmer Index displays on the programmer.
  • Support 2 CS pins.
  • Stand-Alone Mode: Support Start button programming and Control Port for removing control programming.
  • Support WIN8 and above.
  • Support both 32 and 64bit OS.
  • Support Single/Dual Multiple Dies.
  • Support Single/Dual/Quad/Octal. IO.

Performance

 USB ModeReference ICDensityProgram+Verify
(25Mhz,Quad)










Memory Size

W25Q80JVSIQ8Mb6.3
 W25Q16VSIG16Mb12.5
 W25Q32VFIG32Mb18.7
 W25Q64FVBIG64Mb22.2
 MX25L12873FM2I128Mb41.9
 MX25L25645GMI256Mb46.6
 MX25L51245GMI512Mb96.8
 MX66L1G45JMI081Gb203.0

                                                                                                                                                  Unit: sec



  Reference ICDensitySF600/
SF600Plus
SF700SF600Plus-G2








Quad read improved by 50%
VS

SF600/SF600Plus & SF700

W25Q80JVSIQ8Mb2.52.41.5
 W25Q16VSIG16Mb2.42.31.4
 W25Q32VFIG32Mb3.33.01.8
 W25Q64FVBIG64Mb4.94.52.5
 MX25L12873FM2I128Mb8.27.34.1
 MX25L25645GMI256Mb15.814.07.5
 MX25L51245GMI512Mb29.626.113.8
 MX66L1G45JMI081Gb57.250.326.2

                                                                                                                                                  Unit: sec

*Please note the programming and verification time will depend on different IC types; please refer to the IC specification before programming.



Hardware

SF600Plus-G2 is designed with an ISP header, through an appropriate connector, users can connect the programmer and drive the SPI signals, supply the memory and control the controller or application status. Please refer to Table 1 for the SF600Plus-G2 2x10 header pin out. DediProg also provides the SF600Plus-G2 2 pcs of ISP Cable which is used to connect the programmer to the 2x10 and 2X6 (2.54mm) ISP Pin Header on board, please refer to Table 2: 2x10 and Table 3: 2x6 for the SF600Plus-G2 ISP Cable pin out.



Table 1: SF600Plus-G2 ISP Header Pin Out (2x10)

 SPI
 1NCCS22
 3CS1VCC4
 5MISO/DQ1HOLD/DQ36
 7WP/DQ2CLK8
 9GNDMOSI/DQ010
 11NCRESET/IO312
 13GNDIO5/DQ514
 15BufVCC IO6/DQ616
 17IO7/DQ7IO4/DQ418
 19IO1IO220



Table 2: ISP Cable Connector Pin Out (2x10)

 SPI
 1NCCS22
 3CS1VCC4
 5MISO/DQ1HOLD/DQ36
 7WP/DQ2CLK8
 9GNDMOSI/DQ010
 11NCRESET/IO312
 13GNDIO5/DQ514
 15BufVCC IO6/DQ616
 17IO7/DQ7IO4/DQ418
 19IO1IO220



Table 3: ISP Cable Connector Pin Out (2x6) (Support Single, Dual, Quad)

 1VppCS22
 3CS1Vcc4
 5MISO/DQ1Hold/DQ36
 7Wp/DQ2CLK8
 9GNDMOSI/DQ010
 11NCReset12



            Table 4: Control Port

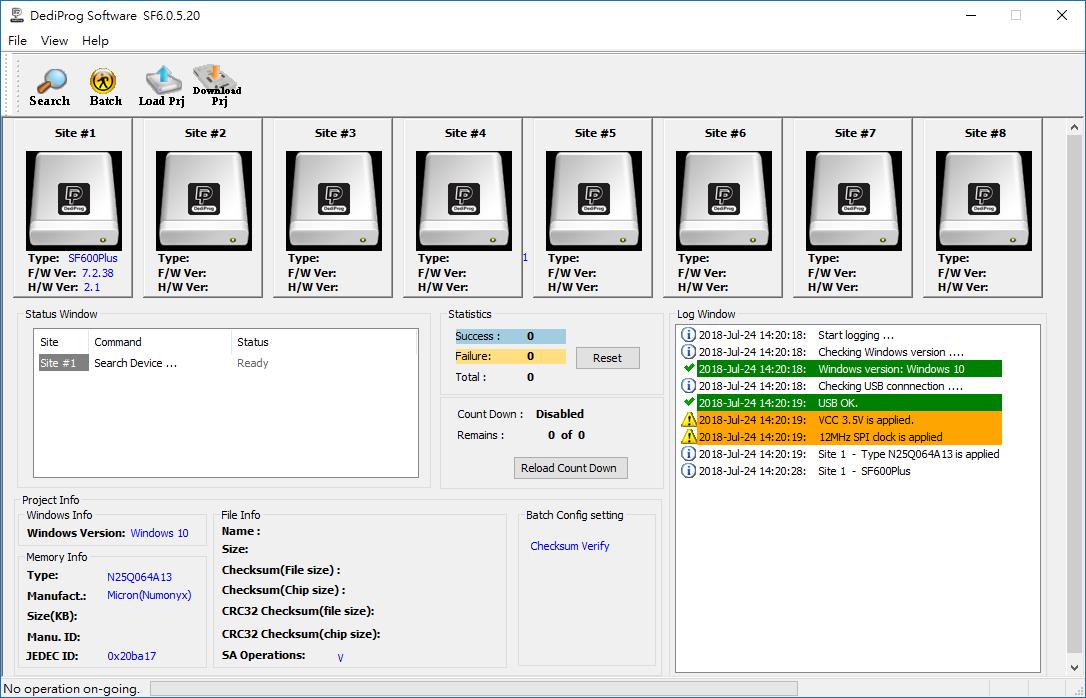

The SF600Plus-G2 USB software toolchain offers high flexibility and meets the highest requirements.



Engineering Mode


For engineers and expert to access advanced features for development, repairing etc.
 For engineers and experts to access advanced features for development, repair, etc.

Production Mode


For operators in production to control multiple programmers and improve the throughput.
For operators in production to control multiple programmers and improve the throughput.

Command Line


Customer software can control multiple SF600Plus programmers by command line interface.
Customer software can control multiple SF600Plus programmers by command line interface.

Hardware Requirement for ISP :

To have a clear understanding of the different ISP or backup boot methods and different reference schematics, please download our dedicated application notes: AN0103 and AN0106 and In-System Programming (ISP) for SPI NOR Flash.

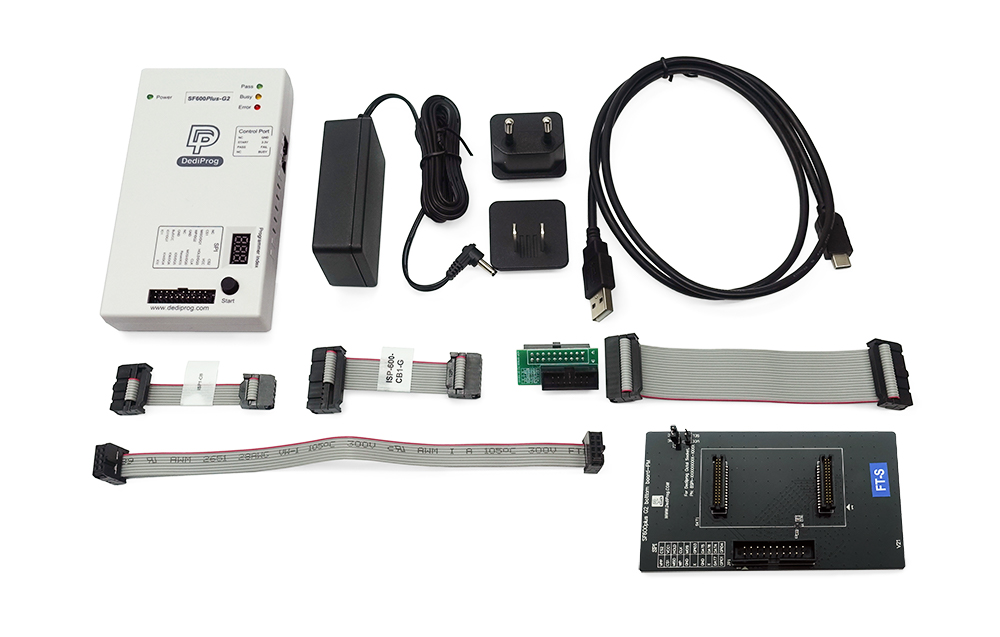

Standard Package

*Remarks: Starting from April 1, 2026, the ProgMaster Socket Bottom board(SF600PG2-ISP-board-PM) will be replaced by the NuProgPlus Socket Bottom Board (SF600PG2-ISP-board-NPP) in the standard package. Customers who require the previously included socket board may purchase it separately via our online store.

For more details, please refer to our PCN Notification.





Optional Purchase

  • Backup Boot Flash Module-8N
  • Backup Boot Flash Module-8W
  • Backup Boot Flash Module-D8W
  • Backup Boot Flash Module-DIP
  • Backup Boot Flash Module-16W
  • Backup Boot Flash Module QUAD-8W

Related Accessories

SF600Plus-G2U
SF600Plus-G2U ISP Programmer
SF600Plus-G2U
This item is unavailable for online purchase.
