SF100 ISP cable

Model Name : ISP1-CB
SF100 ISP cable
USD$ 6

Description

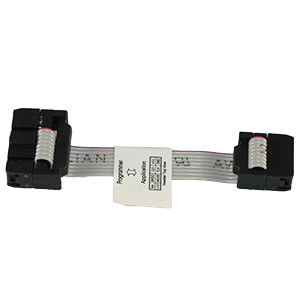

The SF100 ISP cable is used to connect the ISP SF100 programmer to the 2X4 2.54mm ISP Pin Header on board offering the possibility to update directly the SPI Flash content. In case of frequent connections, the ISP cable must be time to time changed to ensure good contact with the application board signals (production or repairing channel). The ISP updating method must only be used if supported by your application or controller.

  • Compatible with the DediProg standard ISP pin out.



ISP Cable Connector Pin Out (2x4)

1 Vcc GND 2
3 CS CLK 4
5 MISO MOSI 6
7 Vpp/Acc I/O3 8
