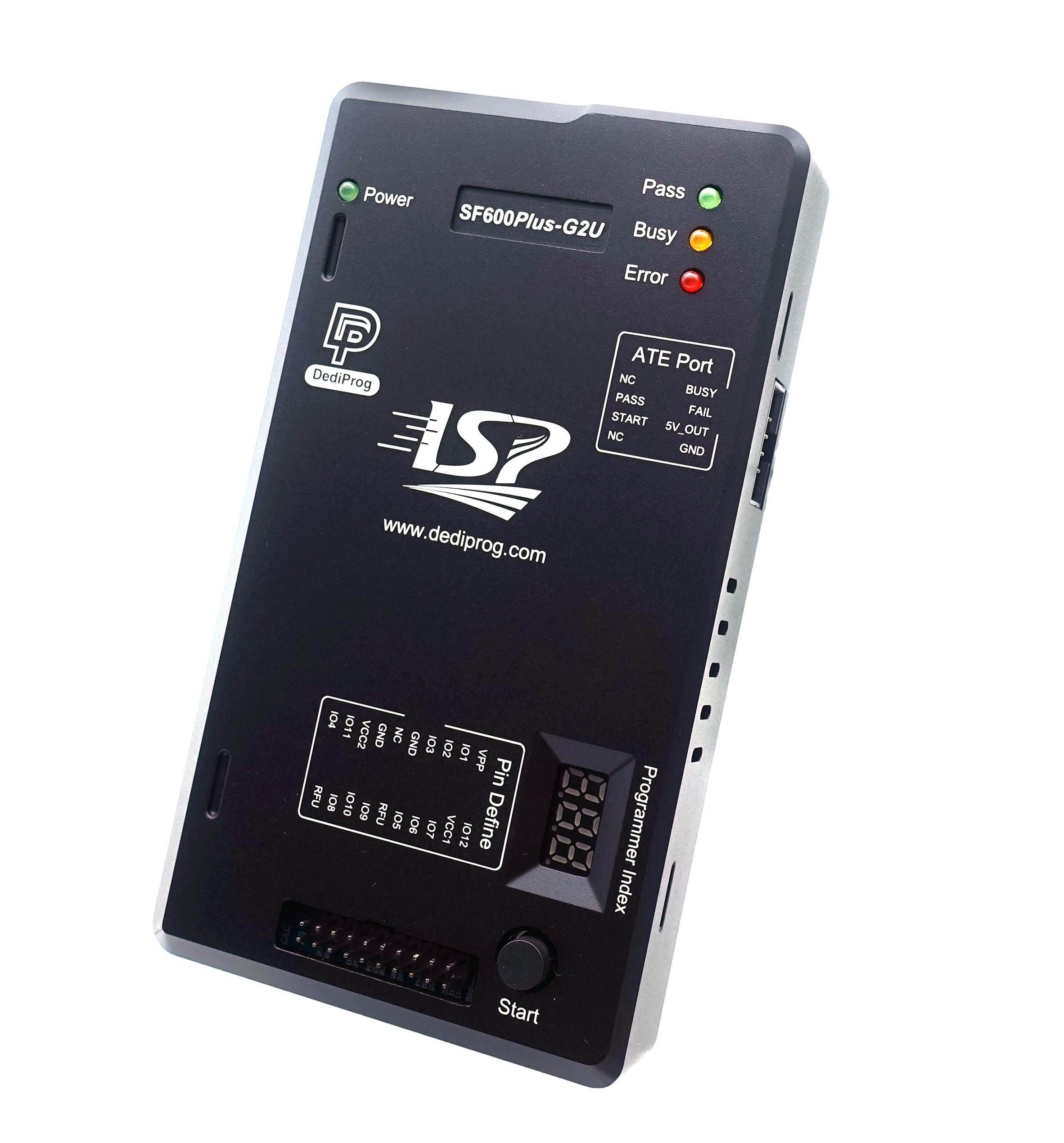

SF600Plus-G2U ISP Programmer

Model Name : SF600Plus-G2U
SF600Plus-G2U is a high-speed ISP universal programmer that tailors ISP and standalone modes. It is easy to integrate into EMS production lines, offering seamless outputs into in-line ICT/FCT programming test platforms.
This item is unavailable for online purchase.



SF600Plus-G2U Feature

The SF600Plus-G2U is a high-speed ISP Universal Programmer designed specifically for In-System Programming (ISP/On-Board programming) and Stand-Alone programming modes, supporting MCU, FPGA, CPLD, SPI NOR Flash, SPI NAND Flash, and EEPROM. It enables In-Line programming for mass production through USB or ATE Port control, facilitating easy integration into production lines. In addition to being compatible with the original SPI programming, it also adds a dedicated On-Board programming application for ISP, making it easy to apply to the In-Line ICT/FCT integrated programming and tester platform.




SF600Plus-G2U Highlights

  1. Supports IC Kinds:
    MCU, FPGA CPLD, SPI NOR Flash, SPI NAND Flash, EEPROM
  2. Multiple programming communication protocols:
    SWD, JTAG, DAP, UART, I2C, CAM, LIN and more.
  3. Sync Programming:
    Supports simultaneous asynchronous programming across multiple programmers and PCB boards.
  4. Wide programming voltage:
    range supports minimum 1.2V to maximum 12V configuration.
  5. Customization:
    Supports user-customized script execution for the programming process.
  6. Wide usage scenarios:
    Supports Project mode for stand-alone programming and provides ATE port for online production mode control in stand-alone mode.

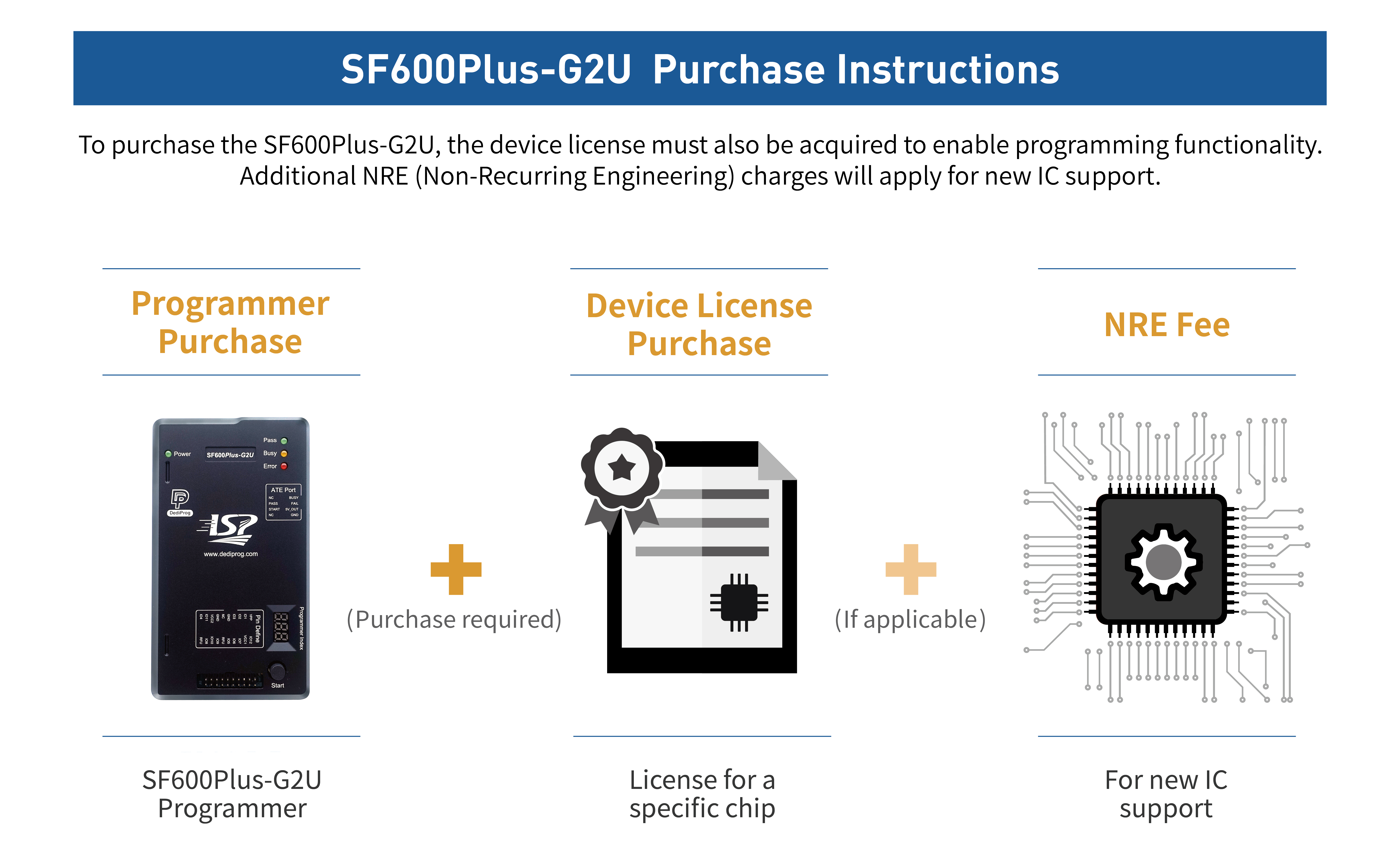

SF600Plus-G2U Purchase Instructions




Notice:

* The SF600Plus-G2U is fully compatible with the SPI Flash Programmer SF600plus-G2. For detailed specifications, please visit the SF600Plus-G2 page.

* The SF600Plus-G2U is only available for users who have ordered the device’s license. If you need more support, please get in touch with us via sales@dediprog.com

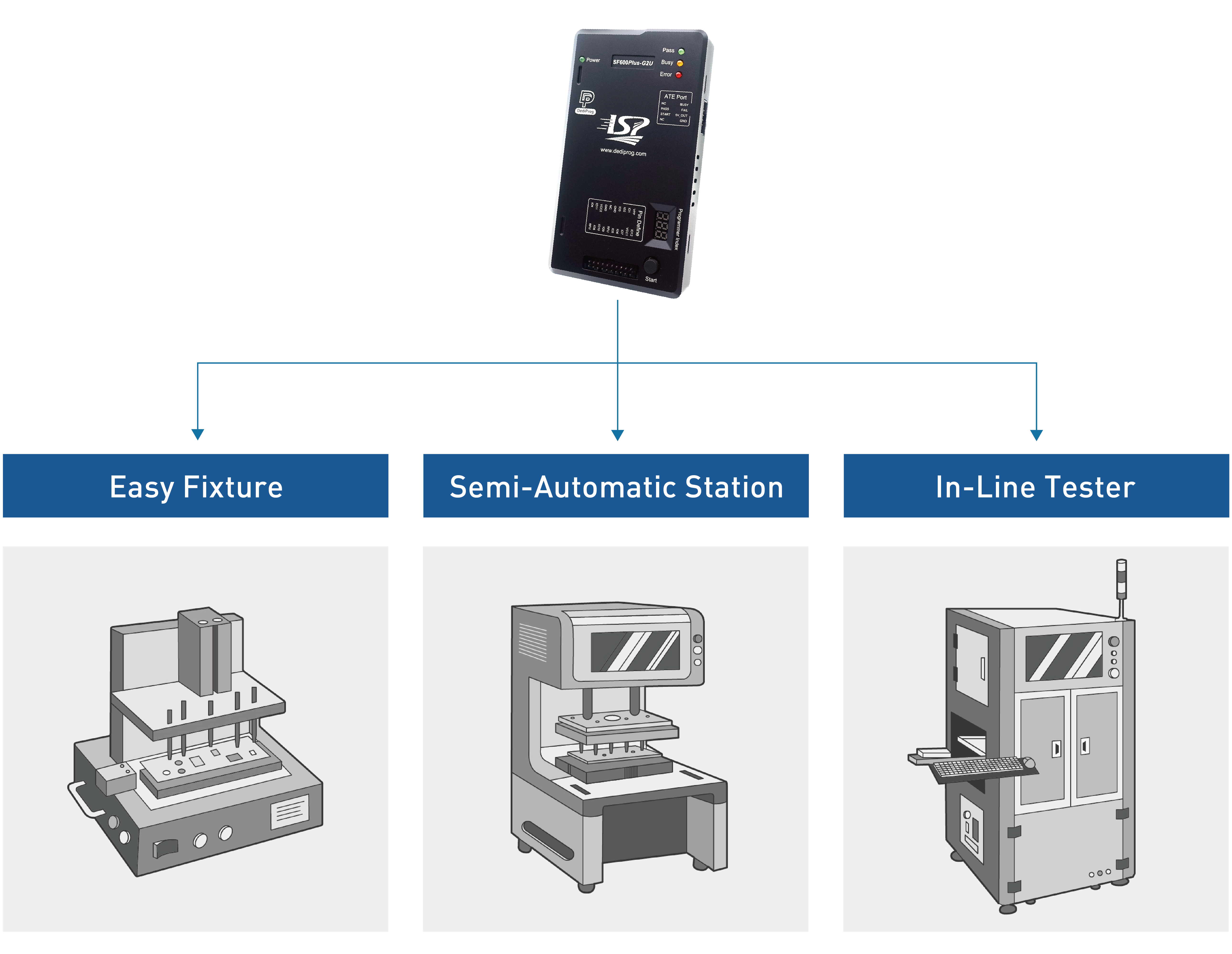

In-System Programming Application Scenarios








Hardware Specifications




Item

Description


 ArchitectureHigh-Performance ARM and FPGA architecture
 Embedded Memory4GB memory
 PC Connection InterfaceHigh-speed USB 2.0 TYPE-C, Ethernet Port

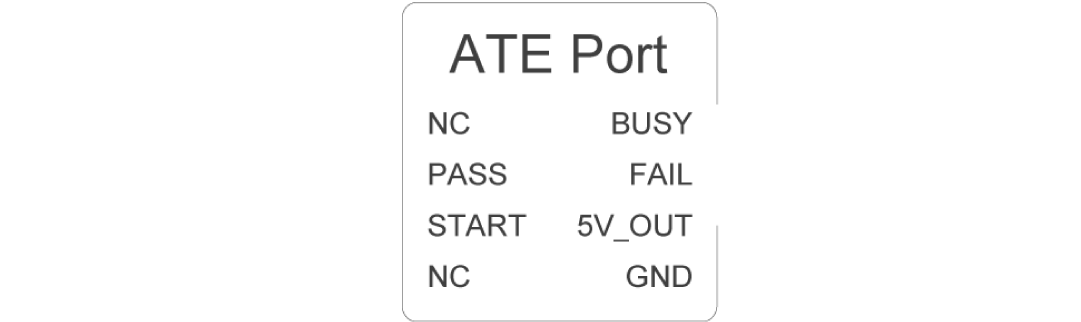

 ATE InterfaceStatus and control IO signals for Start/Pass/Busy/Error signals of 5V TTL signals
 Programming InterfaceIn-System Programming (ISP) / Off-line Mode (SPI supported socket adaptor only)
 Supported IC KindsEEPROM, SPI NOR/NAND Flash, MCU, FPGA CPLD, and more.
 Operation InterfaceLED indicators display Power/Pass/Busy/Error status; Start button
 VCC1 Range1.2 to 4.5V





Software Specifications




Item

Description


 Operating SoftwareDPISP GUI / DPISP CLI
 Operating SystemWindows 8/8.1/10/11
 Support File FormatBinary, Intel Hex, Motorola, etc.
 Programming FunctionsBlank Check, Erase, Program, Verify, Engineering Mode, and Option Register Modify
 Edit ScriptSupports editing running scripts, suitable for On-Line production scenarios
 Other AdvantageConvenient for users to carry out secondary development





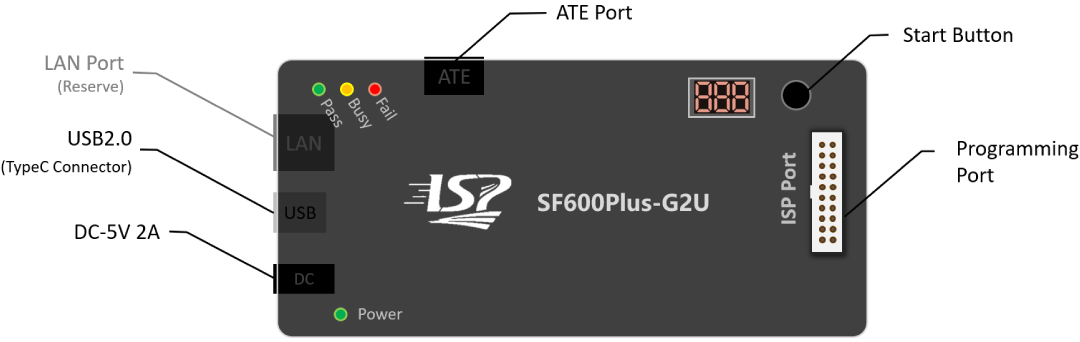

Control Port

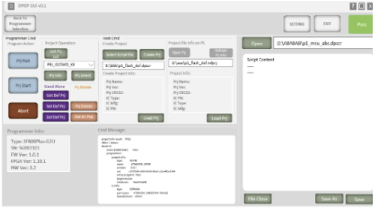

Software Options

The SF600Plus-G2U USB software toolchain offers high flexibility and meets the highest requirements for engineering and production.

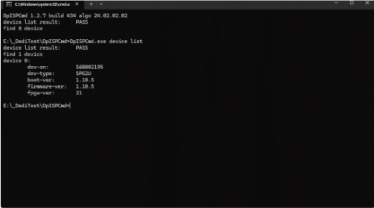

CLI Mode


Ideal for debugging or verification for engineers via the command line.

GUI Engineering Mode


Designed for electronics customers to program ICs by using finalized scripts.

GUI Production Mode

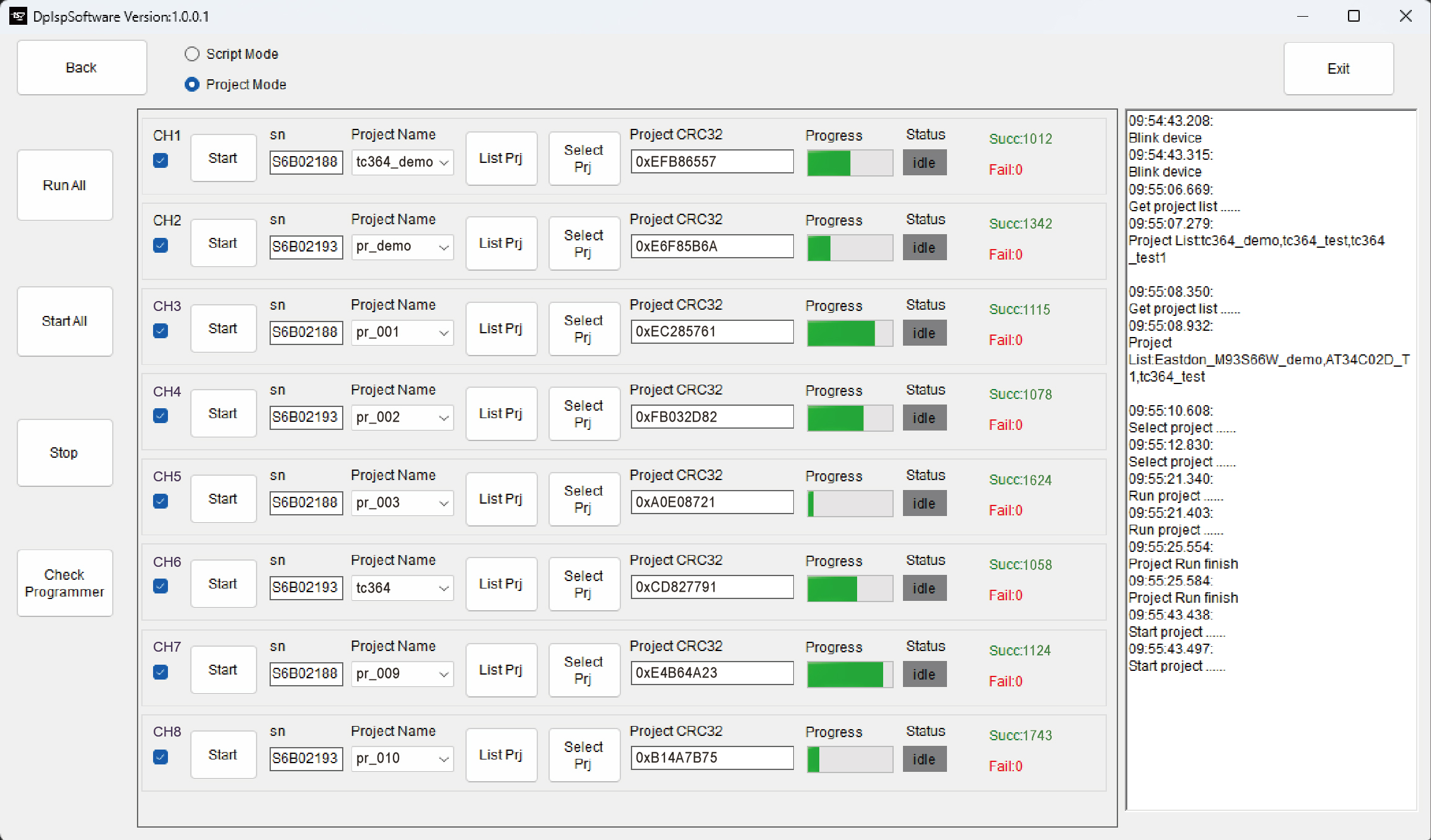

Perfect for mass production, available in both online and offline (stand-alone) modes.

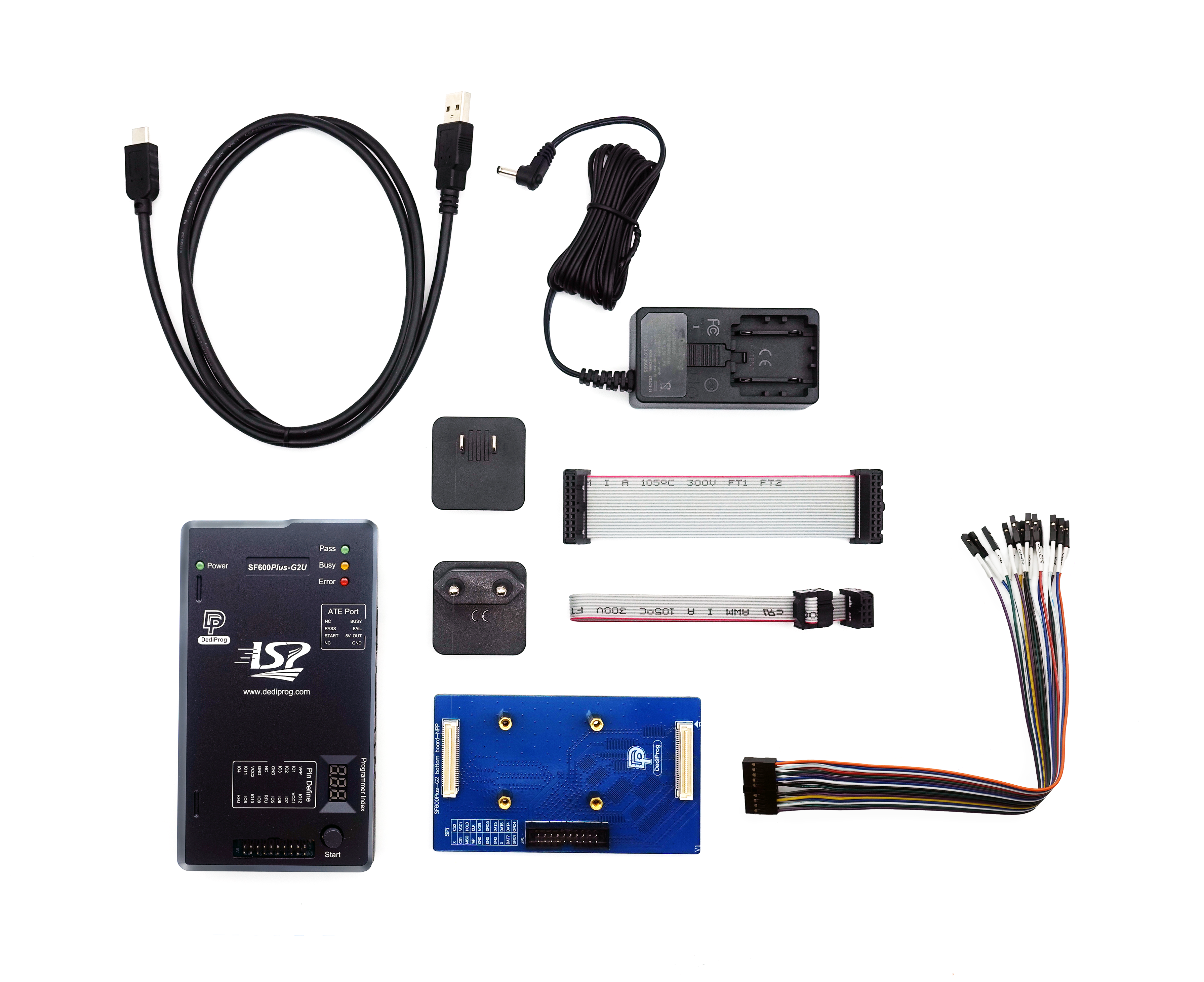

Standard Package



  1. SF600Plus-G2U Programmer x 1
  2. USB 2.0 100cm Cable (A Male -C Male) x 1
  3. Power Adapter (Including US and EU plugs) x 1
  4. Pin 2x10 to 2x10 Cable x 1
  5. Pin 2x4 to 2x4 Cable x 1
  6. DPISP-CB-20-1 x1
  7. NuProgPlus Socket Bottom board x1
  8. Product Card (User manual and information QRcode) x 1
