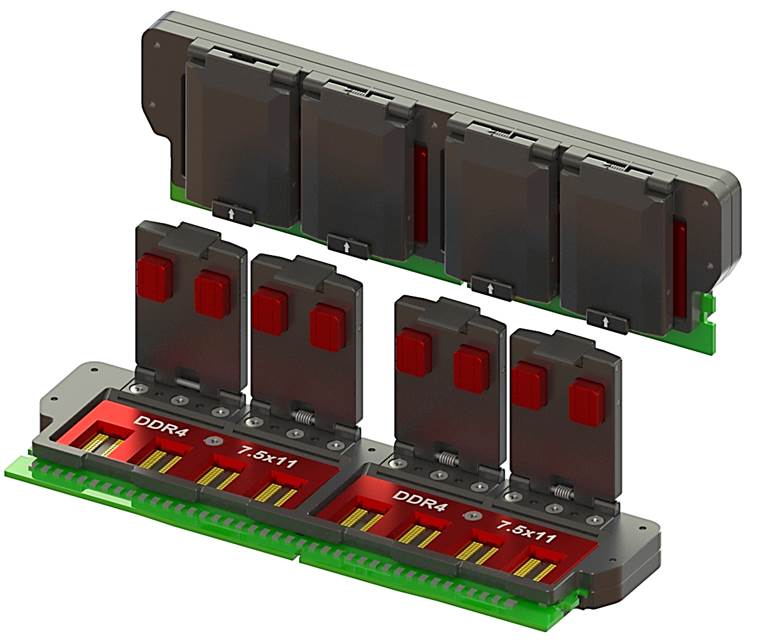

DDR4 Module Test Socket

Model Name : DDR4 Module Test Socket
The DDR4 Socket is designed via an efficient limit frame, minimizing the replacement time via fast removal functions.
This item is unavailable for online purchase.



DDR4 Module Test Socket Function

SDRAM’s package is standard with a scale of 7.5x11, 9x1, and 10x11 mm. The DDR4 Socket is designed via an efficient limit frame, minimizing the replacement time via fast removal functions.






SPEC

  1. IC Size:  9x11 / 9.5x11 / 10x11
  2. Digital Data Rate: 8000 Mb/s
  3. Operating Temp.: -15℃~125℃



Contact Element

  1. Rubber ( PCR )
Contact ElementPCR
Life Time50,000 ~ 100,000 Cycle
Pitch>0.40mm
Temperature-15℃~125℃
Bandwidth>60GHz
IC PackageBGA、LGA、QFN、SON
Ease of RepairHigh



Material

  1. Ultem-2300
  2. Aul.-6061
