SF100 Universal Adaptor

Model Name : ISP-UADP-127
SF100 Universal Adaptor
USD$ 10

ISP Cable Connector Pin Out (2x5)
1 HOLD2 CS2 2
3 CS1 VCC 4
5 MISO HOLD1 6
7 IO3/IO4 CLK 8
9 GND MOSI 10

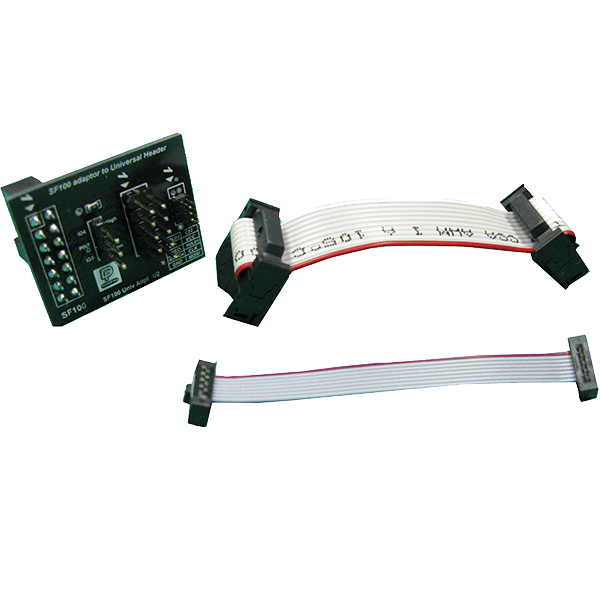

Standard Package
  • SF100 Universal Adaptor x 1
  • BBF cable with 2.54mm pitch 2x5 female header (BBF-CB) x 1
  • 1.27mm 2x4 cable with female header (CB-24-127) x 1
