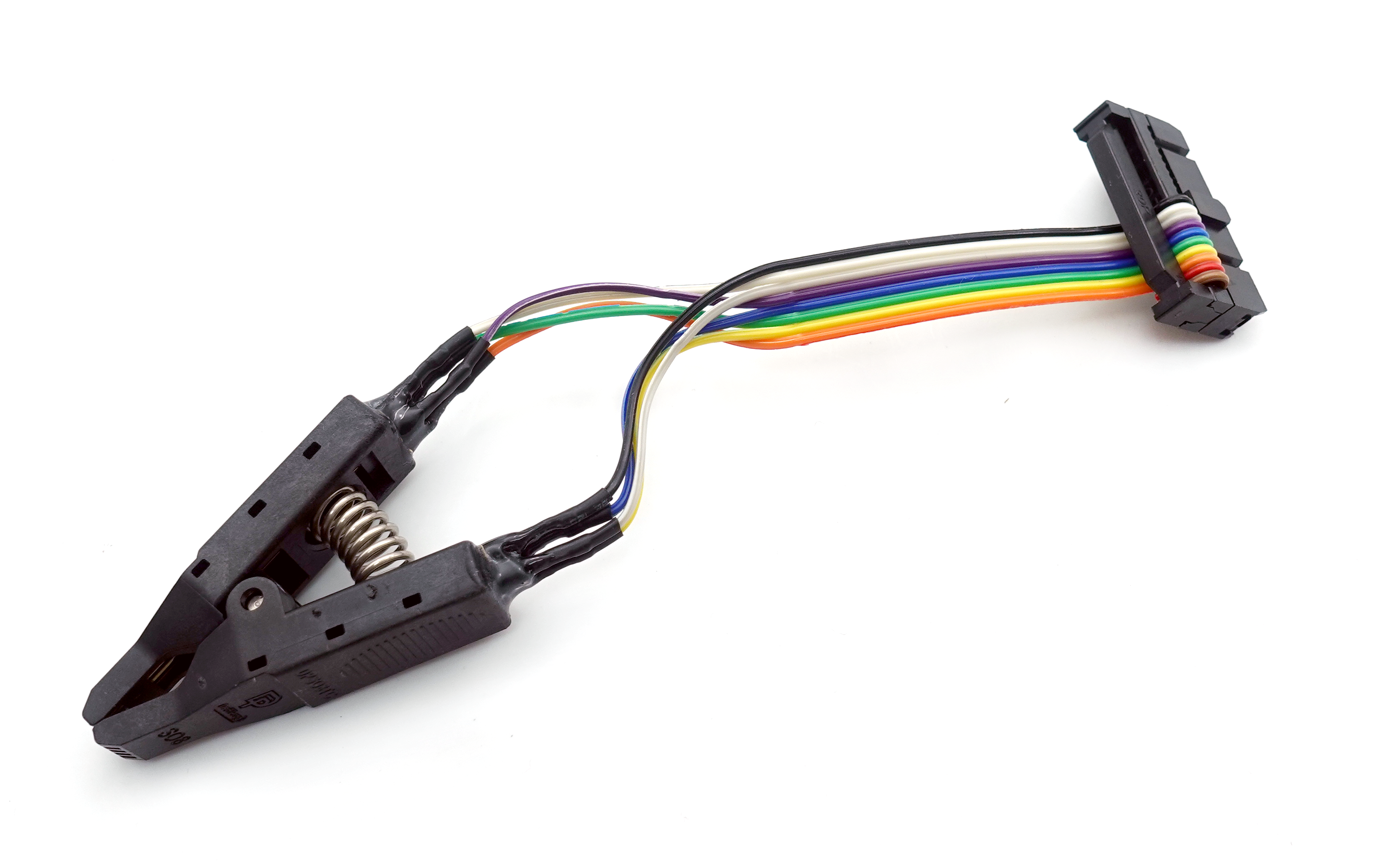

SO8 Testclip With 2x10 Connector

Model Name : EM-TC-8
SO8 Testclip With 2x10 Connector
USD$ 50

Description

The SO8 Test Clip is used to connect the EM100/EM100Pro Series and SF600/SF600Pro Series to the Main Serial Flash soldered on board offering the possibility to the application controller to work on those programmers automatically without a need of connector.

  • Compatible with most of the applications (no hardware modification needed).
  • Compatible with SO8N (150mils) and SO8W (200 mils) package.
