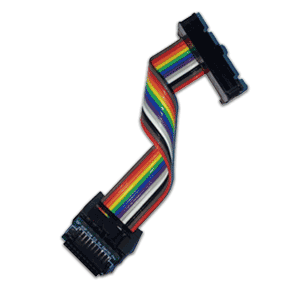

Intel ISP Adaptor-C2 (mated with EM100Pro Series and SF Series)

Model Name : ISP-ADP-INTEL-C2
Intel ISP Adaptor-C2 (mated with EM100Pro Series and SF Series)
USD$ 8



Description

The Intel ISP Adaptor C2 is for connecting EM100Pro, EM100Pro-G2/EM100Pro-G3, SF600, SF600Plus, and SF600Plus-G2 to Intel motherboard.

Mated with Intel 2x10 connector (Samtec: ASP-159358-02 or TFM-110-02-S-D-A).

The cable length is around 8 cm; a header is added at the end.

Supports Quad IO.

Table 1: EM100Pro-G2/EM100Pro-G3 ISP Header Pin Out (2x10),(2x2)

 1NCCS22
 3CS1Vcc4
 5MISO/DQ1Hold/DQ36
 7Wp/DQ2CLK8
 9GNDMOSI/DQ010
 113.3VNC12
 13CTRLNC14
 15CTRL3.3V16
 17CTRLCTRL18
 19GNDNC20




Table 2: EM100Pro ISP Header Pin Out (2x10)

 1Hold2CS22
 3CS1VCC4
 5MISOHOLD16
 7WP1CLK8
 9GNDMOSI10
 113.3VWP212
 13CTRLNC14
 15CTRL3.3V16
 17CTRLCTRL18
 19GNDCTRL20


Table 3: SF600/SF600Plus/SF600Plus-G2 ISP Header Pin Out (2x10)

 1VppCS22
 3CS1VCC4
 5MISO / DQ1HOLD / DQ36
 7WP / DQ2CLK8
 9GNDMOSI / DQ010
 11NCReset / IO312
 13NCNC14
 15NCNC16
 17NCNC18
 19GPIO1GPIO220



Table 4: Intel ISP Adaptor C Pin Out (2x10)

 1KEYCS02
 3RESETCS14
 5GNDVCC6
 7CLKDQ2 / WP8
 9DQ3/HOLDMISO10
 11xMOSI12
 13xx14
 15xx16
 17xx18
 19xx20



Table 5: Some signals have naming variations between EM100Pro/EM100Pro-G2/EM100Pro-G3/SF600/SF600Plus/SF600Plus-G2 pin out and Intel Adaptor pinout.

The following is the matching table.

 EM100Pro/EM100Pro-G2/EM100Pro-G3/SF600/SF600Plus/SF600Plus-G2 ConnectorIntel Adaptor
 PinSignalPinSignal
 2CS24CS1
 3CS12CS0
 4VCC6VCC
