SF600 ISP Cable

Model Name : ISP-600-CB1-G

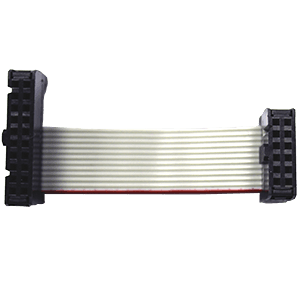

SF600 ISP Cable
USD$ 6

Description

The SF600 ISP cable is used to connect the ISP SF600 programmer to the 2X6 2.54mm ISP Pin Header on board offering the possibility to update directly the SPI Flash content. In case of frequent connections, the ISP cable must be time to time changed to ensure good contact with the application board signals (production or repairing channel). The ISP updating method must only be used if supported by your application or controller.



Table 1: ISP Cable Connector Pin Out (2x6)

1 Vpp CS2 2
3 CS1 Vcc 4
5 MISO/DQ1 Hold/DQ3 6
7 Wp/DQ2 CLK 8
9 GND MOSI/DQ0 10
11 NC Reset 12
