SO8 1.27mm 2x4 Adaptor

Model Name : EM-PRO-CON-SO8
SO8 1.27mm 2x4 Adaptor
USD$ 7



Description

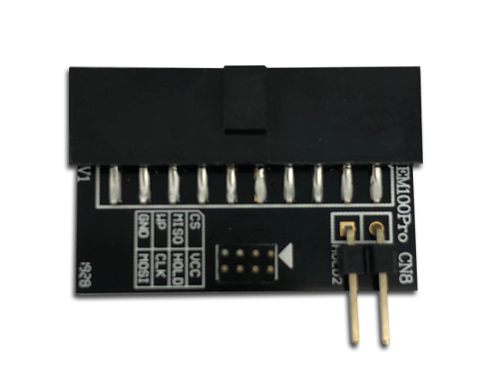

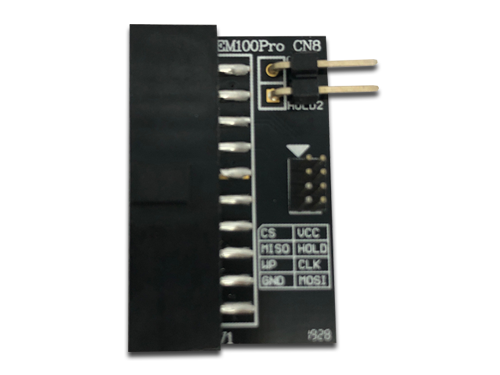

SO8 Connection Adaptor for EM100Pro-G2 or EM100Pro is used to connect EM100Pro-G2 or EM100Pro (2.54mm 2x10) to 1.27mm pin header soldered on the application. In this way, the application can work (boot) from EM100Pro-G2 or EM100Pro directly. Refer to the following pin configuration for SO8 connector on the SO8 Connection Adaptor.

SO8 Connector Pin Out

Standard Package

SO8 Connection Adaptor for EM100Pro-G2 & EM100Pro x 1



Optional

  • SO8 1.27mm 2x4 SMT Pin Header (50 pieces, Width 10.3mm) (HD-1)
  • 1.27mm 2x4 to 1.27mm 2x4 cable (CB-24-127)
