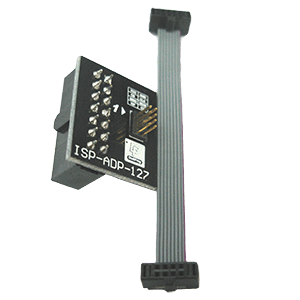

SF100 Adaptor TO 1.27mm 2x4 ISP Cable

Model Name : ISP-ADP-127
SF100 Adaptor TO 1.27mm 2x4 ISP Cable
USD$ 12

Description

ISP-ADP-127 Cable Adaptor is used to connect SF100 pinout (2.54mm 2x7) to 1.27mm pin header (SO8) soldered on the application.



SF100 1.27mm 2x4 Header Pin Out

1 Vcc GND 2
3 CS CLK 4
5 MISO MOSI 6
7 Vpp/Acc I/O3 8
Standard Package
  • ISP-ADP-127 Cable Adaptor x 1
  • 1.27mm 2x4 Cable with Female Header x 1
