WSON8 5*6 SMT Socket (MOQ:5PCS)

Model Name : SOK-SPI-WSON56
WSON8 5*6 SMT Socket (MOQ:5PCS)
This item requested minimum order quantities 5 pcs.
USD$ 10

Description

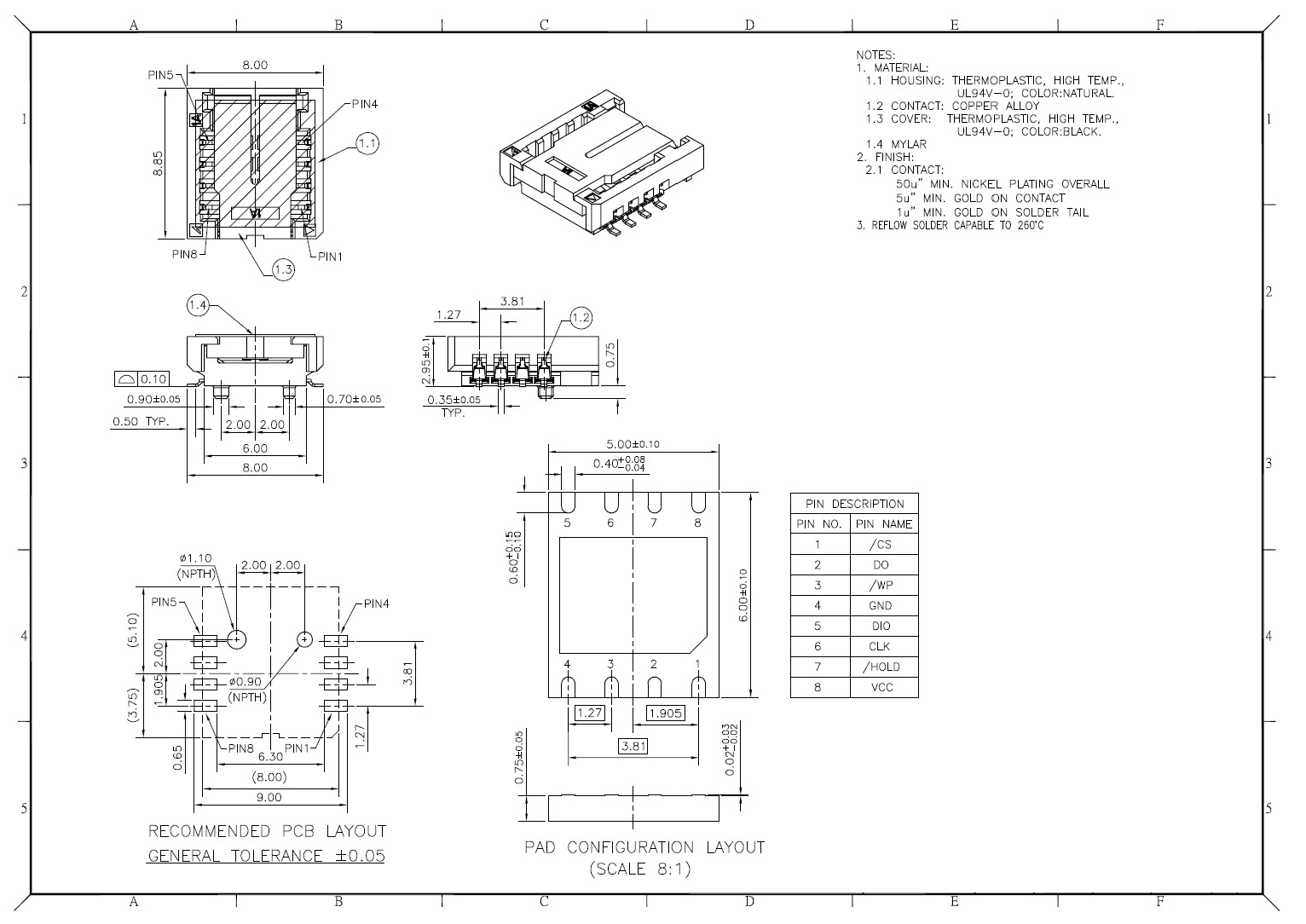

The socket is designed for chips with WSON8 5*6 mm package. The specification drawing only includes the pitch of the socket. If you want to use the IC directly without the SMT socket afterwards, then it is recommended to take the pin pitch of the pad configuration in consideration in the beginning of the design.

MOQ: 5PCS
please contact sales@dediprog.com for volume discount.

Product File Type File Description Version Download File size Last Update
SOK-SPI-WSON56 3D Model File Specification SOK-SPI-WSON56 3D Model File
New
2024-11-18
IC Part Number Manufacturer Chip Type
Socket Adaptor Package IC Size - Length(mm) IC Size - Width(mm) IC Size - Pitch(mm) Remark
