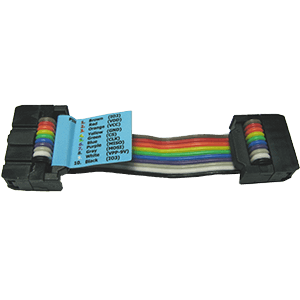

SF100 ISP cable 2x5 (Support IO3)

Model Name : ISP-CB2
SF100 ISP cable 2x5 (Support IO3)
USD$ 7

ISP Cable Connector Pin Out (2x5)

1 IO2 VDD 2
3 VCC GND 4
5 CS CLK 6
7 MISO MOSI 8
9 VPP-9V I/O3 10
