SF100 Bottom Board V3 With Cable, For 25 Series

Model Name : SF100-Bottom-Board-V3-PKG
SF100 Bottom Board
USD$ 30



Description

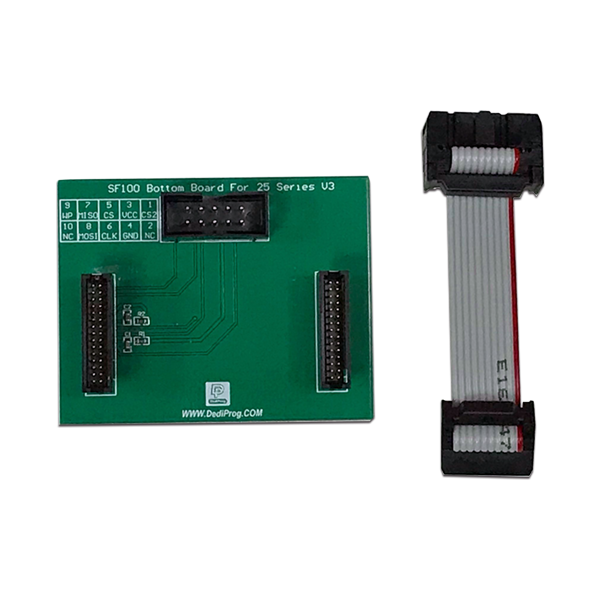

The SF100 Bottom Board is used to operate off-line programming for 25 series SPI flash memories via SF100 ISP programmer. Users can directly use the SF100 ISP cable to connect the SF100 Bottom Board & SF100 ISP programmer.



 SF100 Bottom Board Pin Out

 1CS2NC2
 3VCCGND4
 5CSCLK6
 7MISOMOSI8
 9WPNC10


            The red edge is pin 1
