10-Pin ISP Split Cable (2.00mm) (Compatible with SF100)

Model Name : ISP-SP-CB2
10-Pin ISP Split Cable (2.00mm) (Compatible with SF100)
USD$ 25

Description

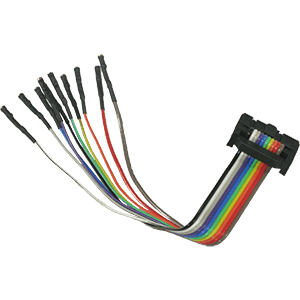

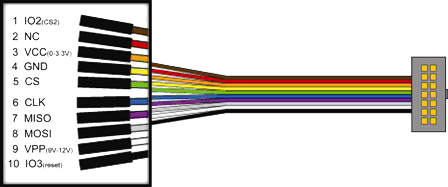

The 10-Pin Split Cable has a 14-pin header(only 10 of them are used for the ISP Split Cable) which can be connected to the SF100 ISP header directly. Each individual split cable has a different color and is labeled with the pin name so that they are easy to identify. Each individual lead is terminated with a single pin crimp connector with 2.00mm pitch. The cable is only 12cm long to minimize signal degradation.



Hardware

Product File Type File Description Version Download File size Last Update
IC Part Number Manufacturer Chip Type
Socket Adaptor Package IC Size - Length(mm) IC Size - Width(mm) IC Size - Pitch(mm) Remark
