SO16W SMT Socket (MOQ:15PCS)

Model Name : SOK-SPI-16W
SO16W SMT Socket (MOQ:15PCS)
This item requested minimum order quantities 15 pcs.
USD$ 3



Description

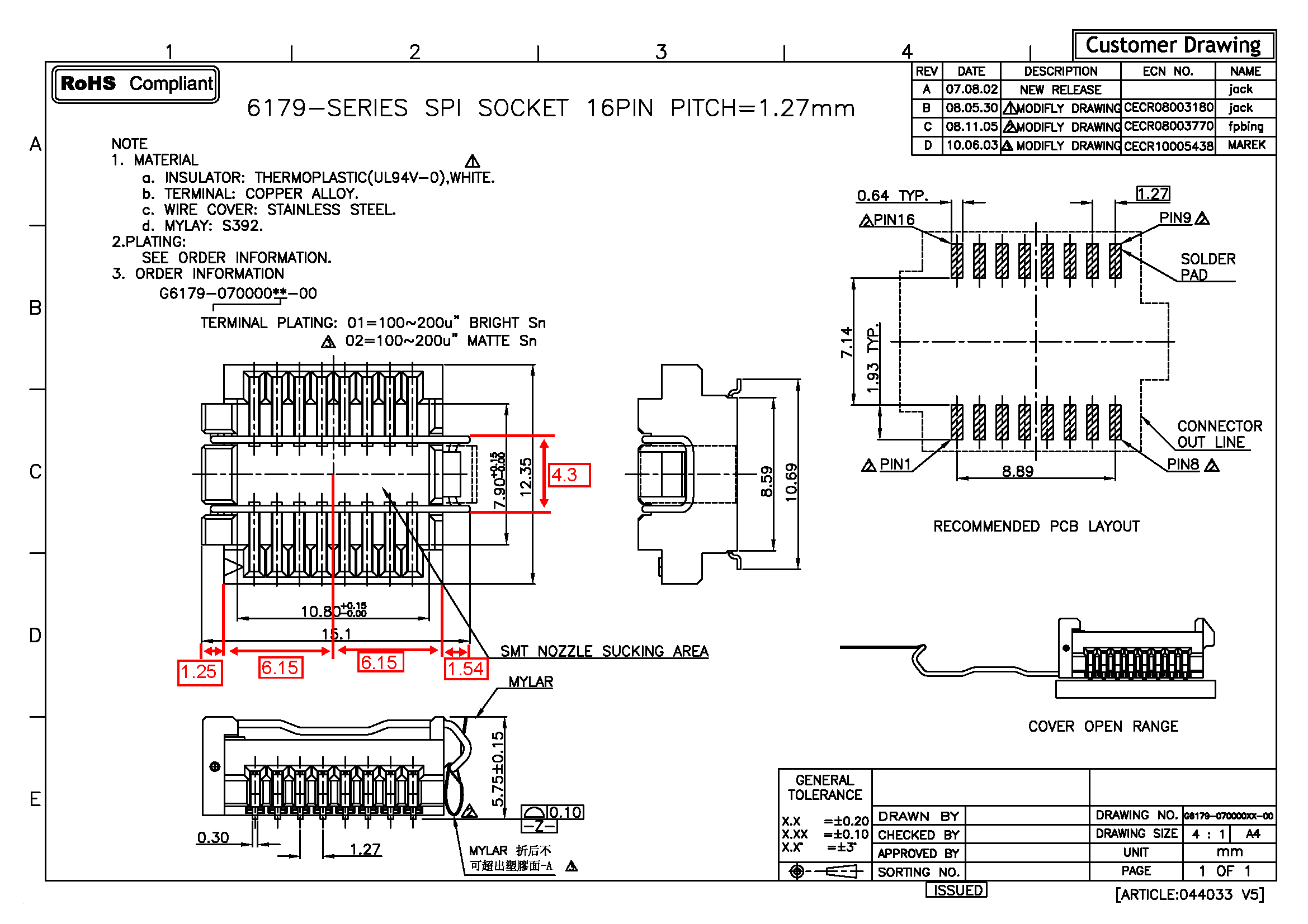

The socket is designed for chips with SO16W 300 mil package. The specification drawing only includes the pitch of the socket. If you want to use the IC directly without the SMT socket afterward, then it is recommended to take the pin pitch of the pad configuration into consideration at the beginning of the design.

MOQ: 15PCS
please contact sales@dediprog.com for a volume discount (quantity greater than 200 units)




1. SO16W 300 mil PCB footprint2. SO16W SPI Flash3. Replace the SPI Flash with SO16W Socket

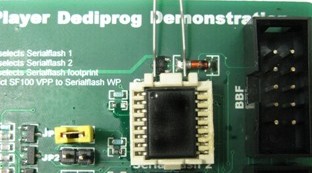

4. Insert SPI Flash into the SO16W Socket5. Done

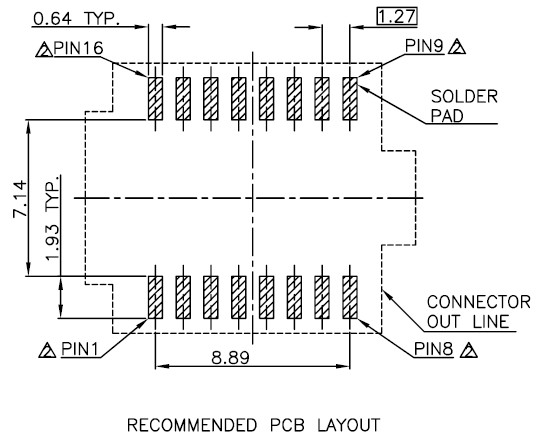

PCB Layout



Product File Type File Description Version Download File size Last Update
SOK-SPI-16W 3D Model File Specification SOK-SPI-16W 3D Model File
New
2024-11-18
IC Part Number Manufacturer Chip Type
Socket Adaptor Package IC Size - Length(mm) IC Size - Width(mm) IC Size - Pitch(mm) Remark
