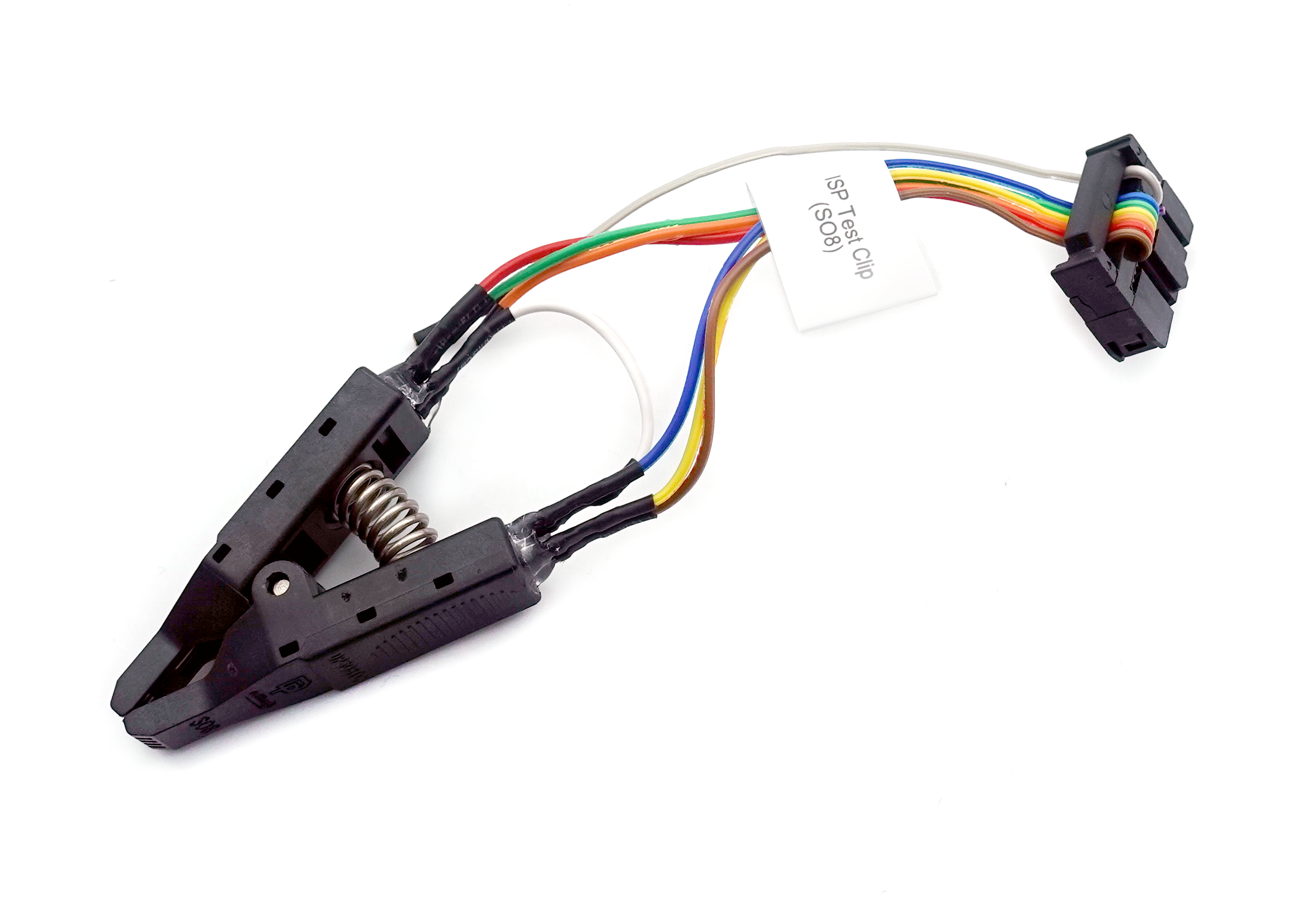

ISP Testclip (SO8) (Compatible with SF100)

Model Name : ISP-TC-8
ISP Testclip (SO8) (Compatible with SF100)
USD$ 50

Description

The ISP SO8 Test Clip is used to connect the ISP SF100 programmer to the Main Serial Flash soldered on board offering the possibility to update directly the SPI Flash content if no ISP connector is mounted on board. The ISP updating method must only be used if supported by your application or controller.

  • Compatible with SO8N (150mils) and SO8W (200 mils) package
  • System can be reset automatically during the update by connecting the additional wire to the System reset signal.
