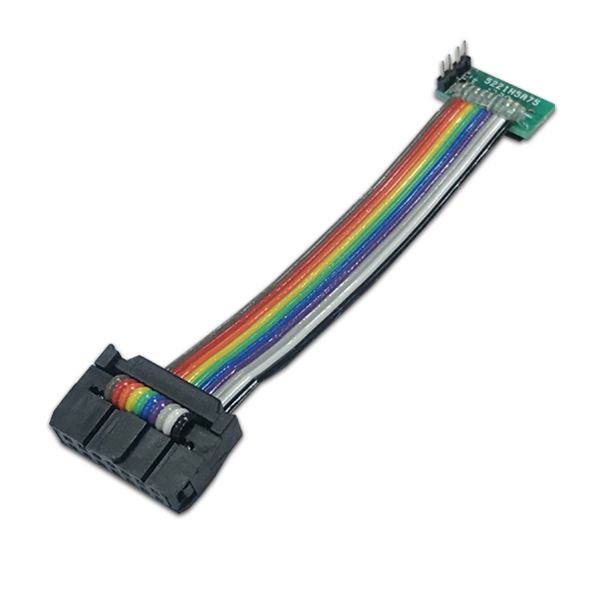

Intel ISP Adaptor-A(mated with SF100)

Model Name : ISP-ADP-INTEL-A
Intel ISP Adaptor-A(mated with SF100)
USD$ 8



Description

The Intel ISP Adaptor A is only used to connect SF100 to the Intel Motherboard.

Mated with Intel 2x10 connector (Samtec: ASP-159358-03).

The cable length is around 8 cm.

Table 1: SF100 ISP Header Pin Out (2x7)

 1I/O1I/O42
 3I/O2 or CS2NC4
 5VCCGND6
 7CSCLK8
 9MISOMOSI10
 11Vpp/AccI/O312
 13SCLSDA14



Table 2: Intel ISP Adaptor A Pin Out (2x10)

 1KeyCS02
 3RESETCS14
 5GNDVCC6
 7CLKDQ2/WP8
 9DQ3/HOLDMISO10
 11xMOSI12
 13xx14
 15xx16
 17xx18
 19xx20



Table 3: Some signals have naming variations between SF100 pin out and Intel Adaptor pin out.

The following is the matching table.

 SF100 connectorIntel Adaptor
 PinSignalPinSignal
 3I/O2 or CS24CS1
 5VCC6VCC
 7CS2CS0
 12I/O33Reset
