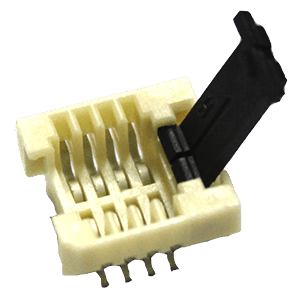

SO8W SMT Socket-1 (MOQ:15PCS)

Model Name : SOK-SPI-8W-1
SO8W SMT Socket-1 (MOQ:15PCS)
This item requested minimum order quantities 15 pcs.
USD$ 2

Description

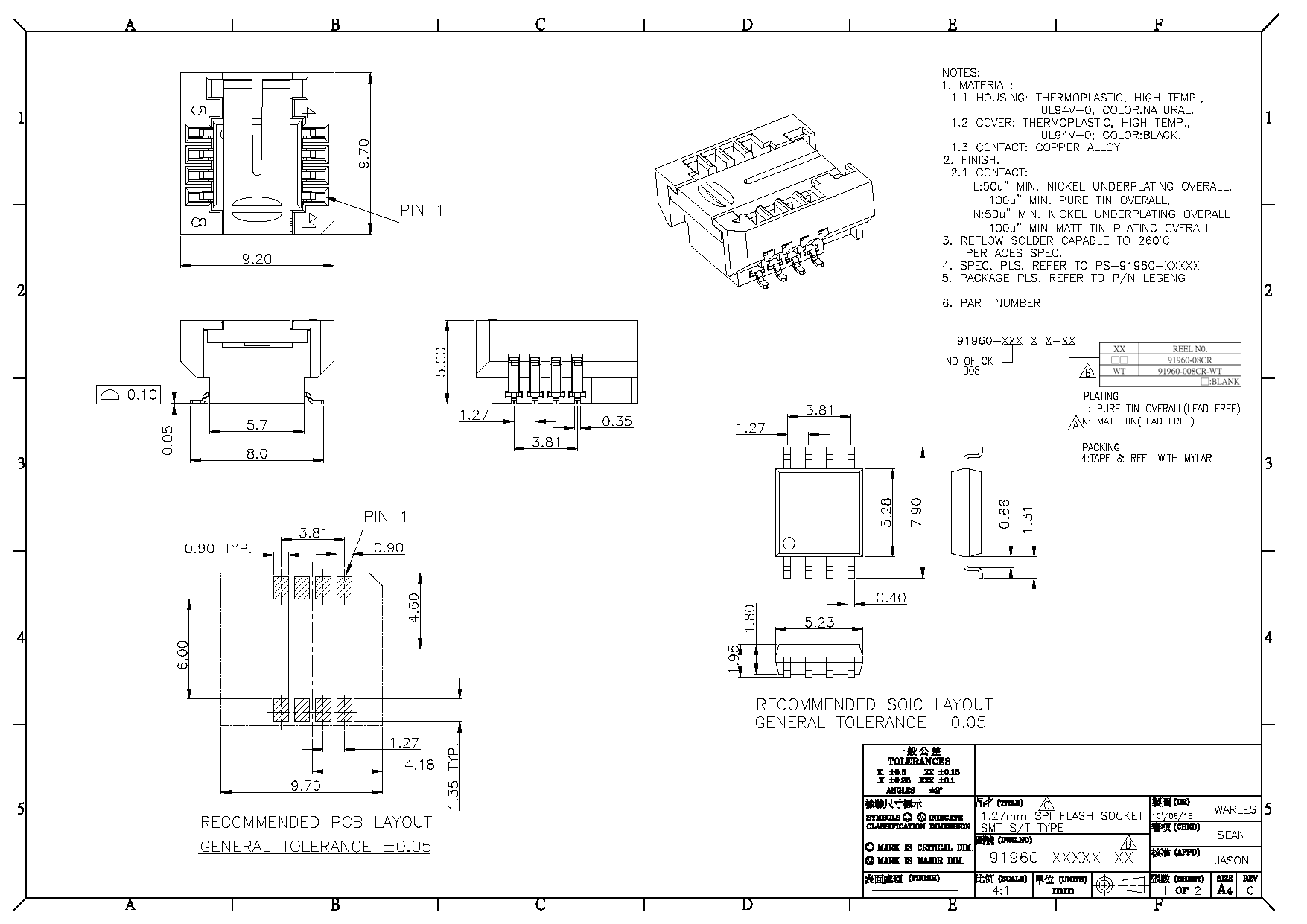

This socket is designed for chips with SO8W 207 mil package. The specification drawing only includes the pitch of the socket. If you want to use the IC directly without the SMT socket afterwards, then it is recommended to take the pin pitch of the pad configuration in consideration in the beginning of the design.

MOQ: 15PCS
please contact sales@dediprog.com for volume discount (quantity greater than 200 units)

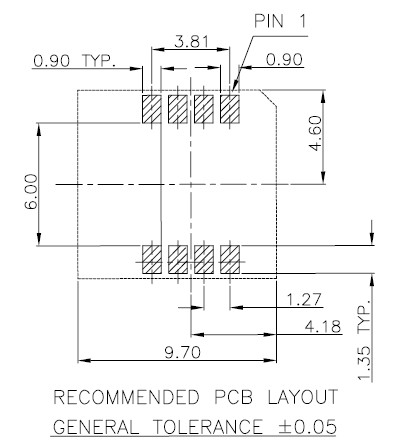

PCB layout







Product File Type File Description Version Download File size Last Update
SOK-SPI-8W-1 3D Model File Specification SOK-SPI-8W-1 3D Model File
New
2024-11-18
IC Part Number Manufacturer Chip Type
Socket Adaptor Package IC Size - Length(mm) IC Size - Width(mm) IC Size - Pitch(mm) Remark
