Intel ISP Adaptor-C (mated with with EM100Pro Series and SF Series)

Model Name : ISP-ADP-INTEL-C

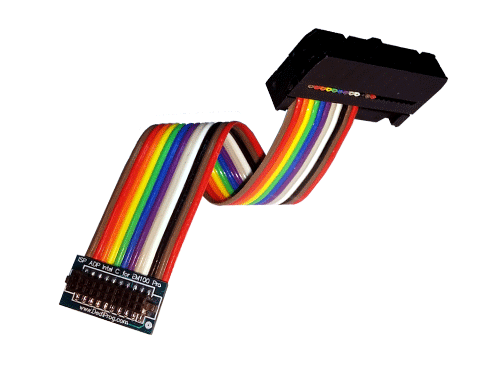

Intel ISP Adaptor-C (mated with with EM100Pro Series and SF Series)
USD$ 8

Description

The Intel ISP Adaptor C is for connecting EM100Pro, EM100Pro-G2, EM100Pro-G3, SF600, SF600Plus, and SF600Plus-G2 to Intel motherboard.

Mated with Intel 2x10 connector (Samtec: ASP-159358-02 or TFM-110-02-S-D-A).

The cable length is around 8 cm.

Supports Quad IO.

Table 1: EM100Pro-G2/EM100Pro-G3 ISP Header Pin Out (2x10),(2x2)

1 NC CS2 2
3 CS1 Vcc 4
5 MISO/DQ1 Hold/DQ3 6
7 Wp/DQ2 CLK 8
9 GND MOSI/DQ0 10
11 3.3V NC 12
13 CTRL NC 14
15 CTRL 3.3V 16
17 CTRL CTRL 18
19 GND NC 20



Table 2: EM100Pro ISP Header Pin Out (2x10)

1 Hold2 CS2 2
3 CS1 VCC 4
5 MISO HOLD1 6
7 WP1 CLK 8
9 GND MOSI 10
11 3.3V WP2 12
13 CTRL NC 14
15 CTRL 3.3V 16
17 CTRL CTRL 18
19 GND CTRL 20



Table 3: SF600/SF600Plus/SF600Plus-G2 ISP Header Pin Out (2x10)

1 Vpp CS2 2
3 CS1 VCC 4
5 MISO / DQ1 HOLD / DQ3 6
7 WP / DQ2 CLK 8
9 GND MOSI / DQ0 10
11 NC Reset / IO3 12
13 NC NC 14
15 NC NC 16
17 NC NC 18
19 GPIO1 GPIO2 20



Table 4: Intel ISP Adaptor C Pin Out (2x10)

1 KEY CS0 2
3 RESET CS1 4
5 GND VCC 6
7 CLK DQ2 / WP 8
9 DQ3/HOLD MISO 10
11 x MOSI 12
13 x x 14
15 x x 16
17 x x 18
19 x x 20





Table 5: Some signals have naming variations between EM100Pro/EM100Pro-G2/EM100Pro-G3/SF600/SF600Plus/SF600Plus-G2 pin out and Intel Adaptor pinout.

The following is the matching table.

EM100Pro/EM100Pro-G2/EM100Pro-G3/SF600/SF600Plus/SF600Plus-G2 Connector Intel Adaptor
Pin Signal Pin Signal
2 CS2 4 CS1
3 CS1 2 CS0
4 VCC 6 VCC
