Introducing DediProg PCB/R Socket

Enhancing IC Testing Efficiency and Minimizing Component Damage Risks


When only a single PCB is available for testing multiple ICs, traditional methods of soldering, testing, and removing ICs are time-consuming and risk damage. To solve this, DediProg has developed the PCB/R Socket testing fixture with Pressure Conductive Silicone Rubber (PCR) for a more stable and efficient solution.

Challenges of Traditional IC Testing


1. Risk of Board Damage
   Repeatedly soldering and desoldering ICs can cause damage to the copper traces and solder joints on the PCB.

2. Risk of IC Damage
   Frequent assembly and disassembly may lead to IC damage or pin deformation, affecting component reuse.

3. Time-Consuming
   The soldering and desoldering process is cumbersome, which can hinder work efficiency.

4. Operational Difficulty
   The process requires specialized skills and equipment, making it challenging for non-professionals to handle.


PCB/R Socket IC Testing Solution

The solution streamlines the process by eliminating the need for repeated soldering, enhancing efficiency, and reducing the risk of component damage.

Here's how to use the PCB/R Socket for efficient IC testing：

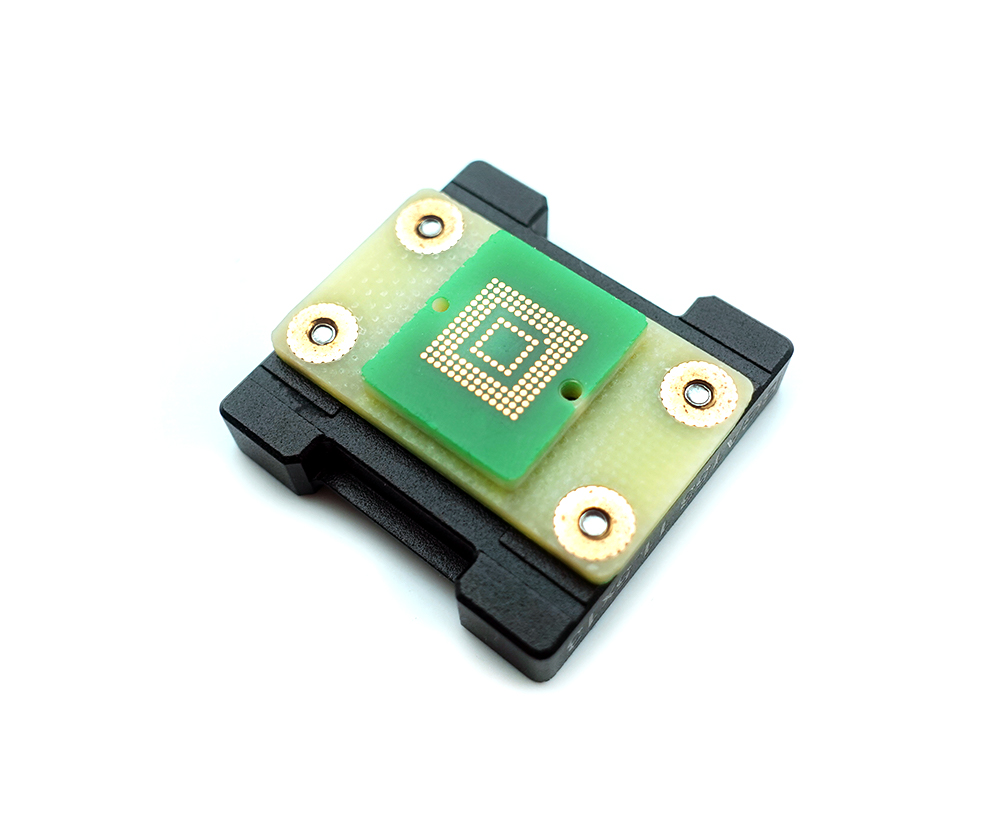

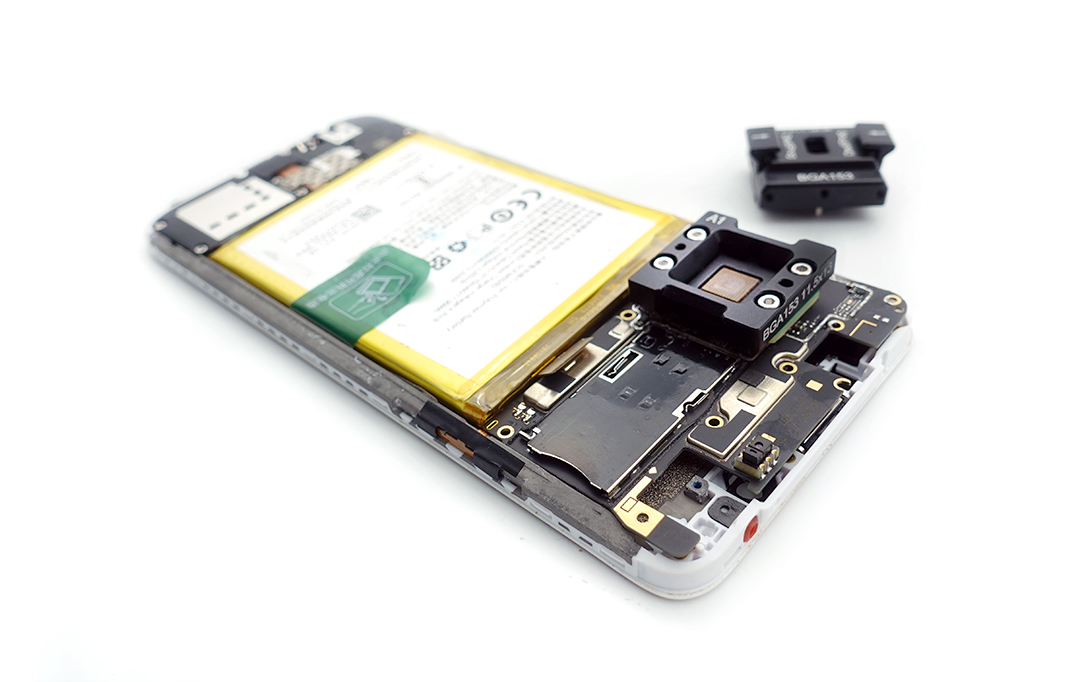

1. Solder the PCB adapter onto the PCB.

2. Secure the mounting plate onto the adapter.

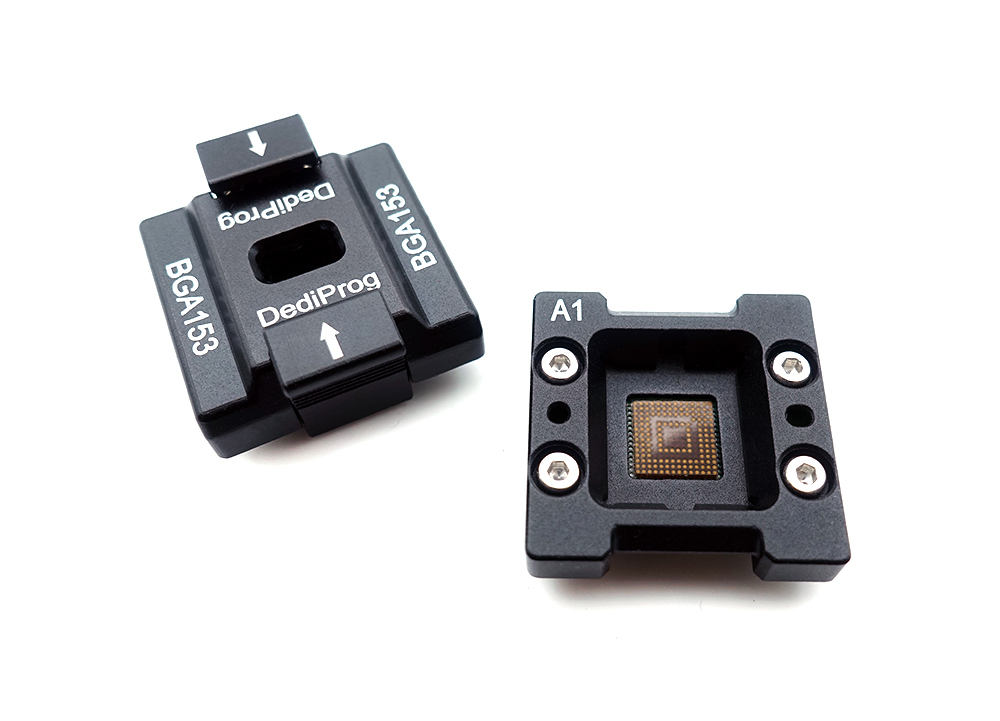

3. Insert the IC into the socket.

4. Close the lid to initiate testing.

5. To replace the IC, remove it from the socket and insert a new one.





Advantages of PCB/R Socket with Self-Developed PCR

DediProg's PCB/R Socket features our self-developed PCR, which provides several key advantages:

1. High Transmission Rate and Low Resistance
   Ensures stable and rapid signal transmission, particularly suitable for high-precision testing environments.

2. Impression-Free Design
   The PCR prevents any surface impressions on the IC, further safeguarding the integrity and functionality of the components.

3. Easy Material Replacement
   The design of the PCR material allows for straightforward and simple replacement of consumables, extending product lifespan and reducing maintenance costs.

Flexible Design to Meet Diverse Needs

DediProg provides standard socket types along with various PCB adapter sizes, and we offer fully customized designs according to customer requirements. When testing space permits, the socket can be further designed with real-time signal transfer points, allowing engineers to conduct signal measurements anytime, enhancing testing accuracy and efficiency.
