SO16W Connection Adaptor for BBF

Model Name : BBF-CON-16
SO16W Connection Adaptor for BBF
USD$ 7

Description

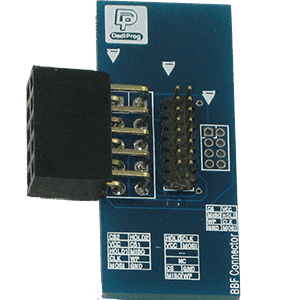

SO16W Connection Adaptor for BBF is used to connect Backup Boot Flash Module-SO16W Socket (2.54mm 2x5) to 1.27mm 2x8 pin header soldered on the application. In this way, the application can work (boot) from Backup Boot Flash Module-SO16W socket directly. Refer to the following Pin Configuration for SO16W connector on the SO16W Connection Adaptor.



SO8 Connector Pin Out

Standard Package
  • SO16W Connection Adaptor for BBF x 1
  • 1.27mm 2x8 SMT male header(10.3mm) x 2



Optional
  • Backup Boot Flash Module-SO16W Socket (BBF-16W)
  • 1.27mm 2x8 SMT male header (50PCS) (HD-2)
  • 1.27mm 2x8 Cable with Female Header (CB-28-127)
