BBF Testclip Dual Flash (SO16W 300mil)

Model Name : BBF-2TC-16
BBF Testclip Dual Flash (SO16W 300mil)
USD$ 75



Description

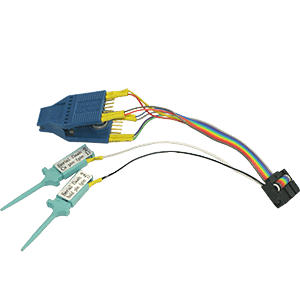

The BBF Dual SO16W Test Clip is used to connect the Dual Backup Boot Flash Tool to the Two Main Serial Flash soldered on board offering the possibility to the application controller to work on the Two Backup Flash automatically without any need of connectors.

  • One SO16W Test Clip to be connected on the First Serial Flash package.
  • Two individual Test Clips to be connected on the Chip select and Hold pin of the second Serial flash.
  • The BBF Dual SO16W Test Clip is frequently used in combination with the Dual Backup Boot Flash Tool to develop Bios code or repair Desktop and notebook using Serial Flash.
  • Compatible with most of the applications (no hardware modification needed).
  • Compatible with SO16W packages.
