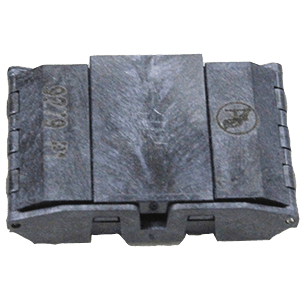

TSOP56 SMT Socket (MOQ:5PCS)

Model Name : 980020-56-P1
This item requested minimum order quantities 5 pcs.
USD$ 25



Description

The surface Mount TSOP56 socket is designed to be soldered directly on the TSOP56 PCB footprint. With this socket, engineers no longer have to solder or desolder the TSOP56 chips during the development phase.

MOQ: 5PCS
Please contact sales@dediprog.com for a volume discount (quantity greater than 100 units)




1. TSOP56 IC2. Replace the IC with TSOP56 Socket3. Open the TSOP56 Socket
4. Insert IC into TSOP56 Socket5. Done





Product File Type File Description Version Download File size Last Update
IC Part Number Manufacturer Chip Type
Socket Adaptor Package IC Size - Length(mm) IC Size - Width(mm) IC Size - Pitch(mm) Remark
