PCB/R Socket

モデル名 : PCB/R Socket
DediProg’s PCB/R Socket is a high-precision IC testing fixture designed to be soldered directly onto a PCB, allowing ICs to be tested on a single board without repeated soldering and desoldering.
この商品はオンライン購入を提供していません。詳細については、カスタマーサポートにお問い合わせください。

Features

DediProg’s PCB/R Socket is a high-precision IC testing solution designed for direct soldering onto PCBs. It allows efficient testing of multiple ICs on a single board without repeated soldering and desoldering.

Built with our self-developed PCR (Pressure Conductive Silicone Rubber), the socket delivers high bandwidth, low contact resistance, and leaves no indentation marks on the IC.

→ Discover what are the common IC testing challenges on PCB








Highlights

DediProg’s PCB/R Socket features self-developed PCR for efficient and reliable IC testing. Key highlights include:



  1. PCB-Mountable Design for Efficient Testing
    Designed to be soldered directly onto the PCB without screws or external fixtures, simplifying integration and reducing assembly complexity.Once installed, ICs can be inserted for testing without soldering, significantly reducing handling time—ideal for R&D and validation stages with frequent sample changes.

  2. Non-Damaging Contact
    Allows ICs to be inserted without soldering, helping prevent heat and mechanical stress on both the IC and the PCB. The pin-less PCR contact design also prevents indentation on solder balls during testing.

  3. Compact and Elevated Design for Space Optimization

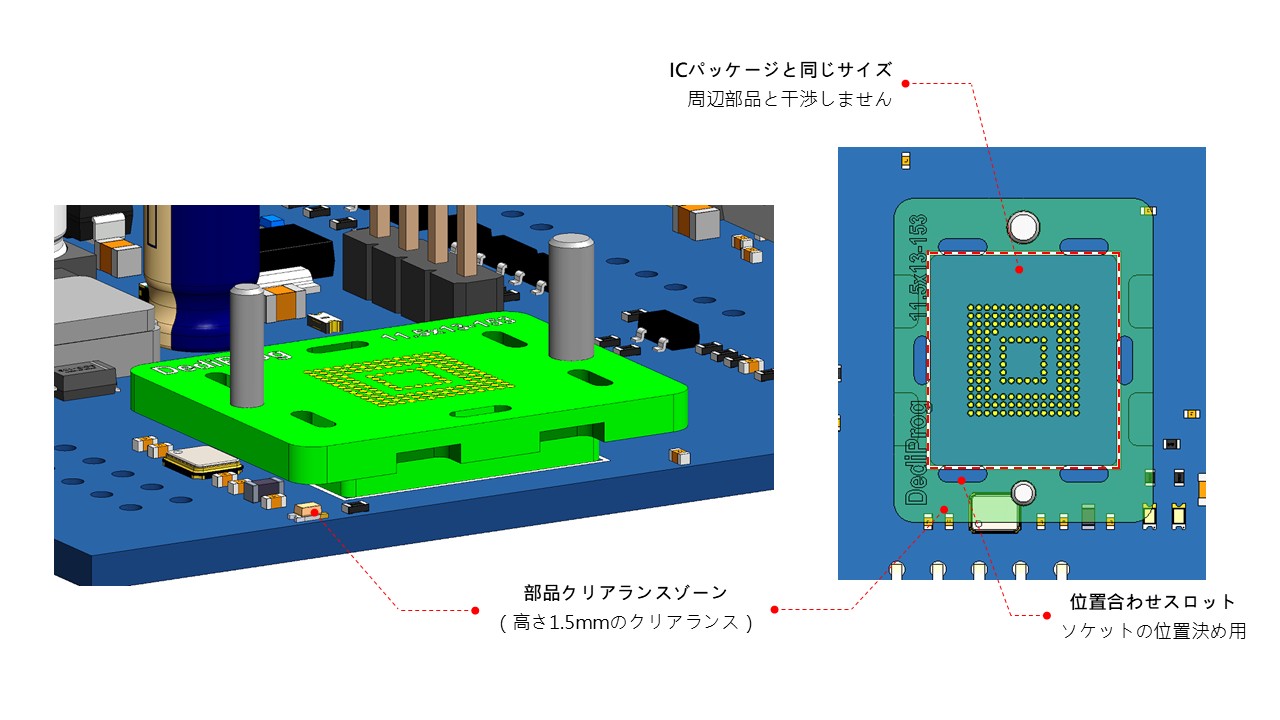

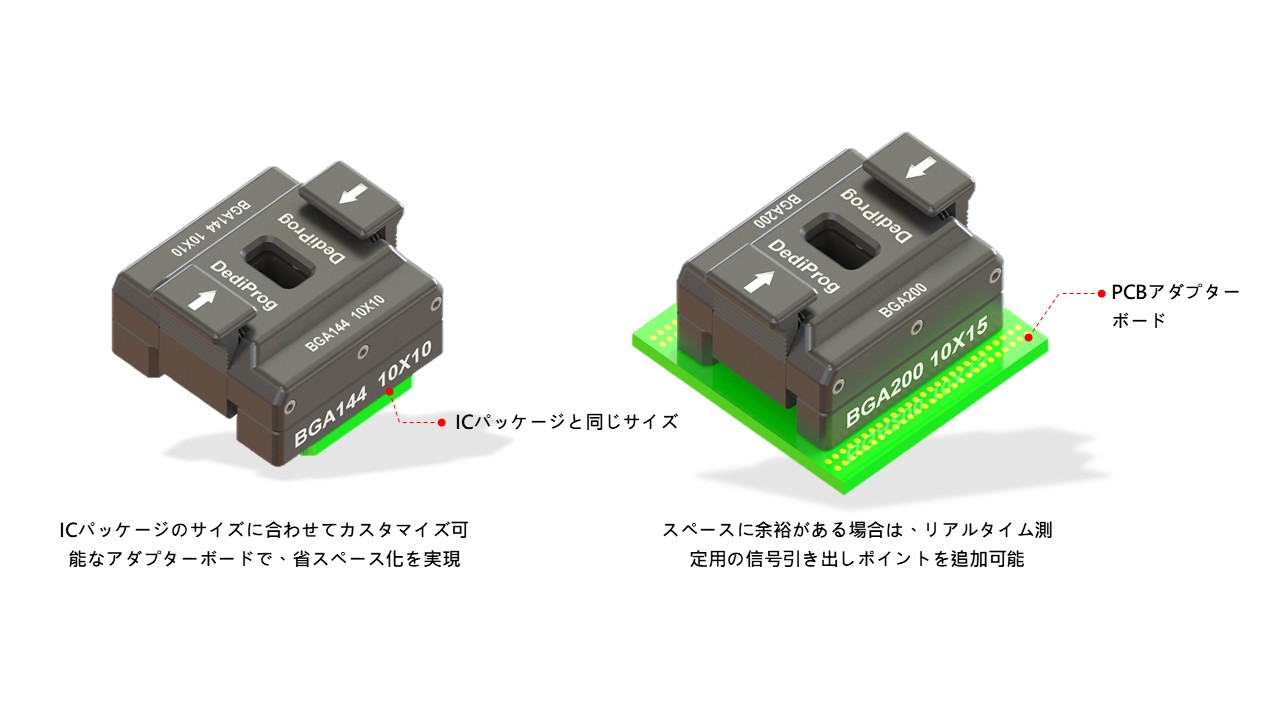

    The adapter board can be customized to match the IC package size. Signal breakout points can also be added for real-time measurement. A 1.5mm clearance is included to avoid interference with nearby components, making it suitable for use on densely populated PCBs.
  4. High-Reliability PCR Contact
    Incorporates DediProg’s self-developed PCR material, which provides high conductivity, low contact resistance, and stable signal transmission. → Learn more about DediProg's self-developed PCR


Specs

PCB/R Socket

Contact ElementPressure Conductive Silicone Rubber (PCR)
Supported IC PackageBGA, QFN
IC Size Range2x2mm ~13x13mm
Max. Pin Count500
Min. Pitch0.35mm
Bandwidth-1dB @ 60GHz
Operating Temp.  -55℃ ~ 135℃

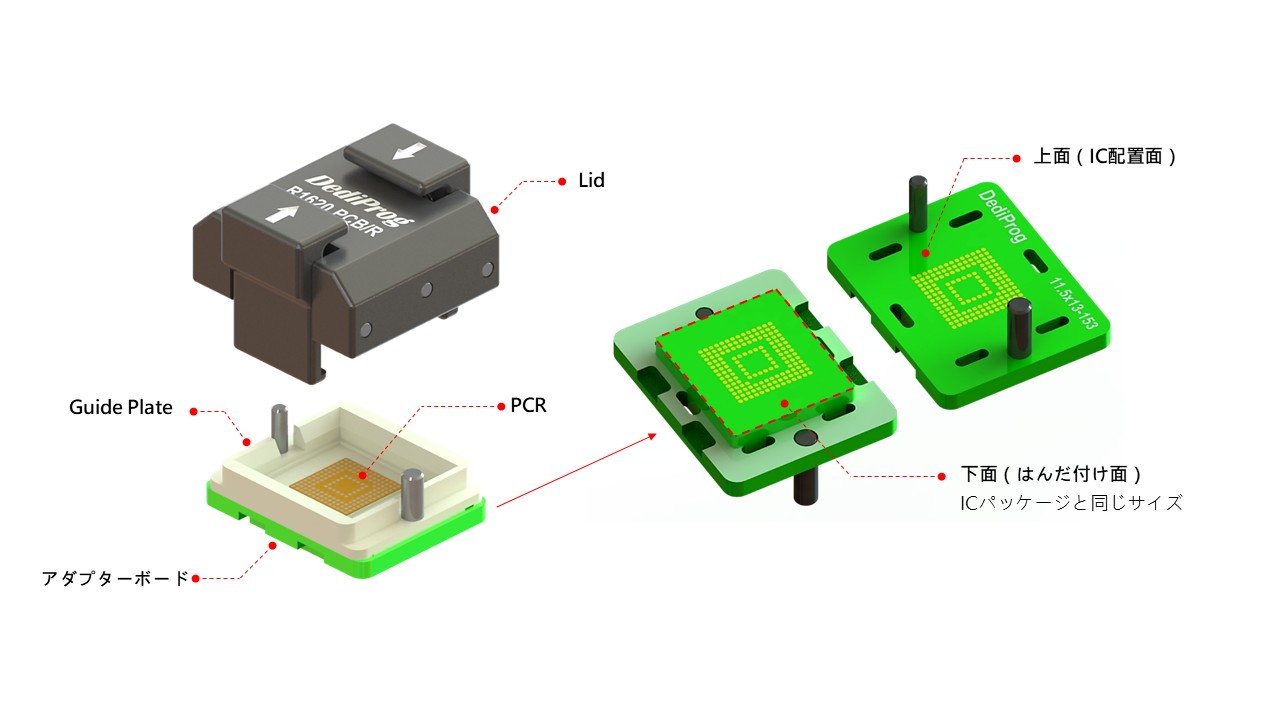

Structure

PCR on Socket

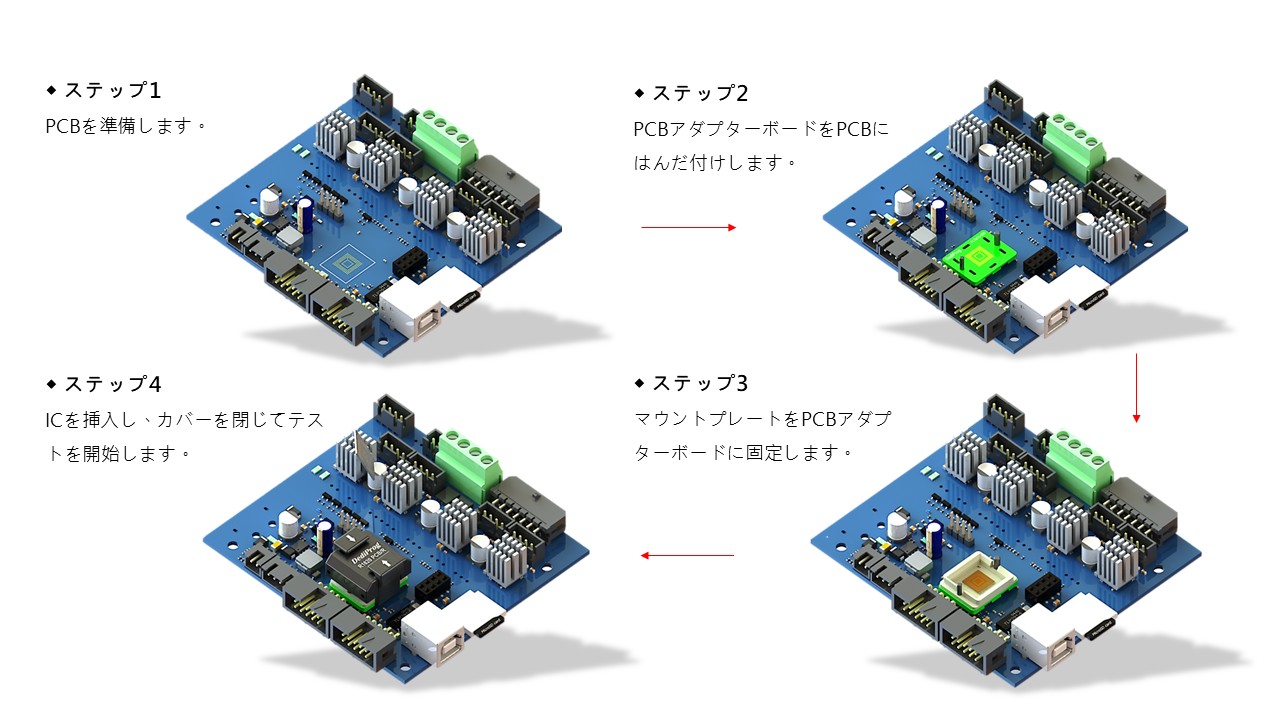

Installation Procedure
