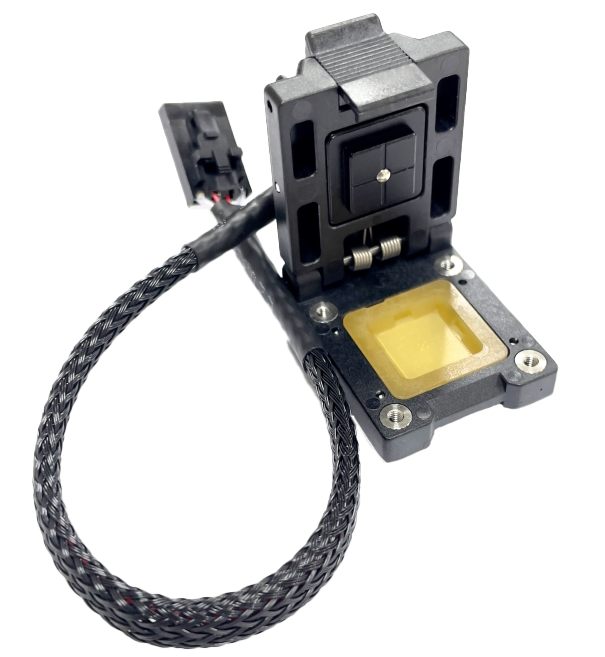

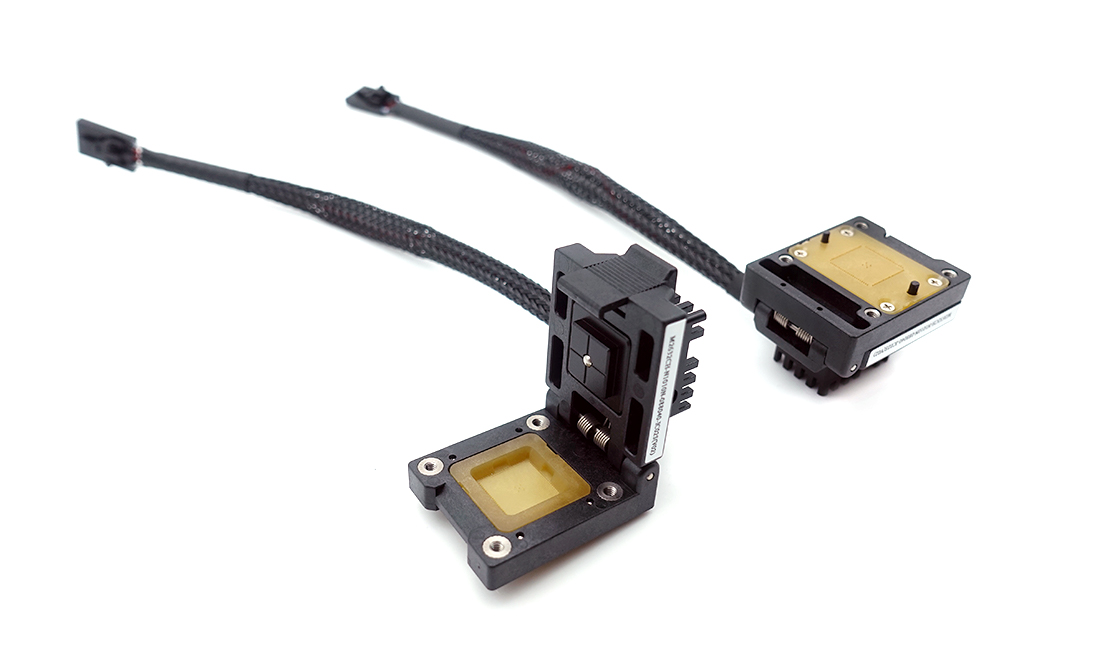

ITC Test Socket

Model Name : ITC Test Socket
DediProg’s ITC Test Socket is an advanced fixture designed for precise IC burn-in testing, featuring independent temperature control for stable and accurate test conditions.
Este artículo no está disponible para compra en línea.

Function

DediProg’s ITC (Independent Temperature Control) Test Socket is a high-precision testing fixture specifically designed for IC burn-in testing. Unlike traditional burn-in ovens that apply uniform heat to multiple ICs, the ITC Test Socket uses high-precision sensors and a thermal control system to provide each IC with independently and accurately regulated heating. This setup effectively prevents temperature inconsistencies or deviations, thereby improving the reliability of test results. With precise thermal management, the ITC Test Socket helps customers enhance test efficiency, shorten testing cycles, and significantly reduce testing costs.

→ Discover how the ITC Test Socket solves IC burn-in testing challenges




Highlights





  1. High-efficiency and Durable Heating System
    Equipped with durable cartridge heaters, the ITC Socket delivers efficient heat transfer and supports fast, stable heating up to 175°C.

  2. High-precision Temperature Control
    Integrated with high-precision sensors, the system ensures accurate temperature regulation with a deviation of within ±0.5°C, enabling consistent and reliable testing.

  3. Flexible Compatibility
    Supports all IC package types available on the market and is adaptable to various testing conditions.

  4. Durable and Stable Design
    Made of high-temperature-resistant and wear-resistant materials, ensuring long-term testing without performance degradation.


Specs

ITC Test Socket

Contact ElementPogo Pin
Supported IC PackageAll IC Package
IC Size Range1x1mm ~ 30x30mm
Max. Pin Count ~2000 Pin
Min. Pitch0.30mm
Bandwidth<25GHz
Operation Temperature-55℃ ~ 175℃
Thermal Power Diss.30W
High Temperature Operating Life~ 1,000 Hours
































Structure

ITC Test Socket
